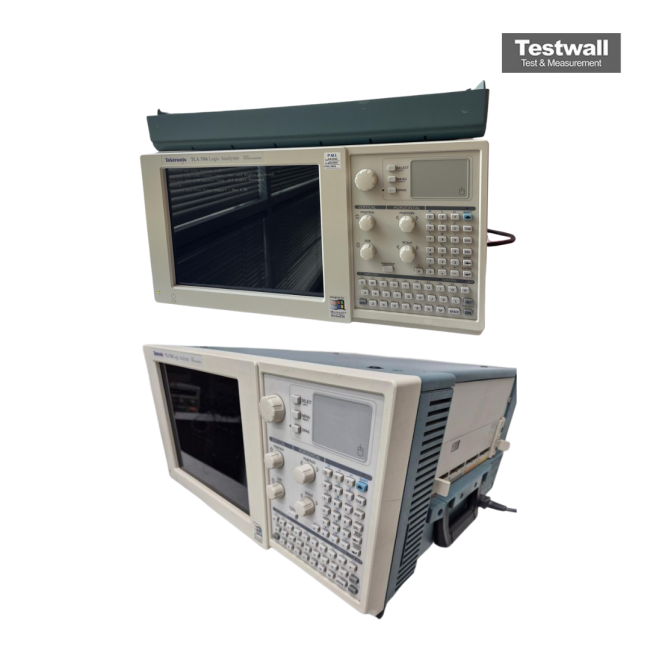

Tektronix TLA704
| Attribute | Value |
|---|---|
| Number of Channels | 136 Channels |
| Maximum Clock Speed | 100 MHz |
| Timing Resolution | 500 ps |
| Memory Depth | 64K per Channel |
| Input Voltage Threshold Range | -2.0V to +4.0V |
| Minimum Detectable Pulse Width | 3.5 ns |
| Number of Module Slots | 4 Slots |
| Form Factor | Mainframe |
| Display | 10.4-inch Color LCD |
| Operating System | Windows NT |
| Model | TLA704 |
|---|
The Tektronix TLA704 is a portable logic analyzer featuring MagniVu™ acquisition technology, offering 500 ps timing resolution on all channels via a single probe. It supports up to 200 MHz state acquisition, simultaneous state and high-speed timing analysis, and features 64-channel pattern generation at up to 268 MHz.
Ideal for digital verification and debugging, it integrates waveform search, a 4-channel 1 GHz oscilloscope, and supports up to 16 modules for large applications.
Testwall can supply the used Tektronix TLA704, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TLA704.
