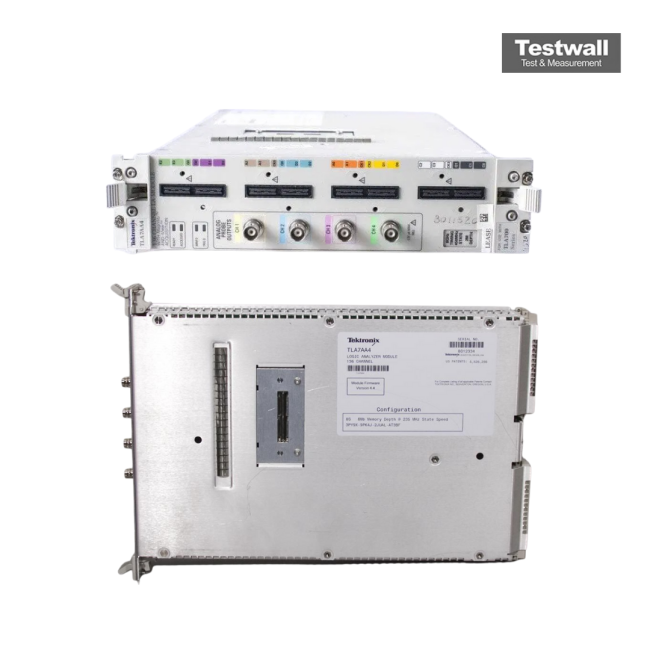

Tektronix TLA7AA4
| Attribute | Value |
|---|---|
| Number of Channels | 136 Channels |
| Maximum Sample Rate | 2 GHz Synchronous / 4 GHz Asynchronous |
| Memory Depth | 128 Mb per channel |
| Threshold Range | -2.0 V to +4.0 V |
| Threshold Accuracy | ±50 mV |
| Minimum Detectable Pulse Width | 500 ps |
| Input Impedance | 100 kΩ ± 2% in parallel with 3 pF |
| Maximum Input Voltage | ±15 V (DC + peak AC) |
| Time Resolution | 500 ps (Synchronous), 250 ps (Asynchronous) |
| Compatible Mainframe | Tektronix TLA7000 Series Logic Analyzer Mainframe |
Tektronix TLA7AA4 Options:
- TLA7AA4 - 1S - Increase to 512 Kb Depth at 120 MHz State
- TLA7AA4 - 2S - Increase to 2 Mb Depth at 120 MHz State
- TLA7AA4 - 3S - Increase to 8 Mb Depth at 120 MHz State
- TLA7AA4 - 4S - Increase to 32 Mb Depth at 120 MHz State
- TLA7AA4 - 5S - Increase to 128 Kb Depth at 235 MHz State
- TLA7AA4 - 6S - Increase to 512 Kb Depth at 235 MHz State
- TLA7AA4 - 7S - Increase to 2 Mb Depth at 235 MHz State
- TLA7AA4 - 8S - Increase to 8 Mb Depth at 235 MHz State
- TLA7AA4 - 9S - Increase to 32 Mb Depth at 235 MHz State
- TLA7AA4 - AS - Increase to 128 Kb Depth at 450 MHz State
- TLA7AA4 - BS - Increase to 512 Kb Depth at 450 MHz State
- TLA7AA4 - CS - Increase to 2 Mb Depth at 450 MHz State
- TLA7AA4 - DS - Increase to 8 Mb Depth at 450 MHz State
- TLA7AA4 - ES - Increase to 32 Mb Depth at 450 MHz State
- TLA7AA4 - C3 - Calibration Service 3 Years
- TLA7AA4 - C5 - Calibration Service 5 Years
- TLA7AA4 - D1 - Calibration Data Report
- TLA7AA4 - D3 - Calibration Data Report 3 Years (with Opt. C3)
- TLA7AA4 - D5 - Calibration Data Report 5 Years (with Opt. C5)
- TLA7AA4 - R3 - Repair Service 3 Years
- TLA7AA4 - R5 - Repair Service 5 Years
- TLA7AA4 - IN - Product Installation Service
| Model | TLA7AA4 |
|---|
The Tektronix TLA7AA4 logic analyzer features 136 channels, 8 GHz MagniVu™ timing, 120 MHz state analysis, and a deep 32 Mb memory for precise digital circuit monitoring. It supports versatile clocking modes including internal and source synchronous, with high-resolution 125 ps time stamping across 3.25 days duration.
Ideal for debugging and validation, it enables simultaneous high-speed timing, state, and analog analysis via the same probe. Compression probing with 0.5 pF loading ensures minimal circuit intrusion.
Testwall can supply the used Tektronix TLA7AA4, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TLA7AA4.
