Tektronix
Tektronix TLA7D2
136 Channels Number of Channels
235 MHz Maximum Clock Speed
500 ps Timing Resolution
235 MHz State Speed
64 Kb per channel Memory Depth
| Attribute | Value |
|---|---|
| Number of Channels | 136 Channels |
| Maximum Clock Speed | 235 MHz |
| Timing Resolution | 500 ps |
| State Speed | 235 MHz |
| Memory Depth | 64 Kb per channel |
| Threshold Voltage Range | -2.0 V to +4.0 V |
| Input Impedance | 100 kΩ ± 1% with 3 pF |
| Module Compatibility | Tektronix TLA7000 Series Mainframe |
| Form Factor | Single-Wide Module |
| Minimum Detectable Pulse Width | 2 ns |
Tektronix TLA7D2 Options:
- TLA7D2 - Opt. A1 - Universal Euro 220 VAC; 50 Hz power plug
- TLA7D2 - Opt. A2 - UK 240 VAC; 50 Hz power plug
- TLA7D2 - Opt. A3 - Australian 240 VAC; 50 Hz power plug
- TLA7D2 - Opt. A4 - North American 240 VAC; 60 Hz power plug
- TLA7D2 - Opt. A5 - Switzerland 220 VAC; 50 Hz power plug
- TLA7D2 - Opt. A99 - No Power Cord
- TLA7D2 - Opt. IN - Product installation service (on-site configuration and user familiarization; excluding network integration)
- TLA7D2 - Opt. R3 - Extends depot repair warranty service period to three years
- TLA7D2 - Opt. S1 - Uplifts standard one-year warranty service of mainframe and installed modules to on-site service
- TLA7D2 - Opt. S3 - Uplifts Opt. C3 and/or R3 of mainframe and installed modules to on-site service (must be ordered with Opt. C3 and/or R3)
- TLA7D2 - Opt. C3 - Three years of Calibration Service (includes initial calibration and two annual calibrations)
- TLA7D2 - Opt. D1 - Add calibration test data report
- TLA7D2 - Opt. D3 - Provides test data for each calibration (must be ordered with Opt. C3)
| Model | TLA7D2 |
|---|

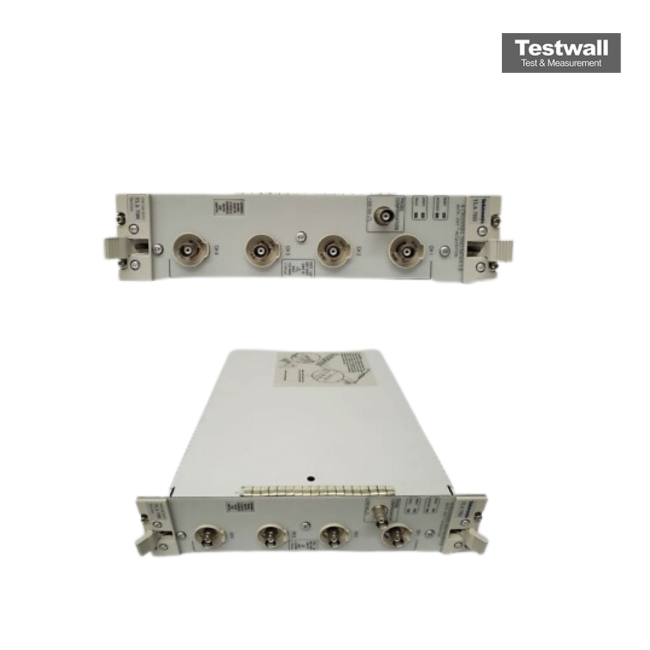

The Tektronix TLA7D2 is a four-channel digitizing oscilloscope module offering 500 MHz analog bandwidth and 2.5 GS/s sampling for precise waveform capture and analog analysis.
It features 15 KB memory per channel and includes four P6243 1 GHz active FET probes, delivering high-fidelity signal acquisition for demanding analog-digital debugging tasks.
Testwall can supply the used Tektronix TLA7D2, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TLA7D2.
