Tektronix
Tektronix TM502A
Mainframe
2 Number of Slots
40 Watts total Power Output
90–250 VAC Input Voltage
48–440 Hz Input Frequency
85 VA maximum Power Consumption
| Attribute | Value |
|---|---|
| Number of Slots | 2 |
| Power Output | 40 Watts total |
| Input Voltage | 90–250 VAC |
| Input Frequency | 48–440 Hz |
| Power Consumption | 85 VA maximum |
| Compatible Module Series | Tektronix TM500 series plug-in modules |
| Chassis Type | Portable mainframe enclosure |
| Operating Temperature | 0°C to +50°C |
| Storage Temperature | -55°C to +75°C |
| Dimensions (H x W x D) | Approximately 133 mm x 216 mm x 368 mm (5.25 in x 8.5 in x 14.5 in) |
| Model | TM502A |
|---|

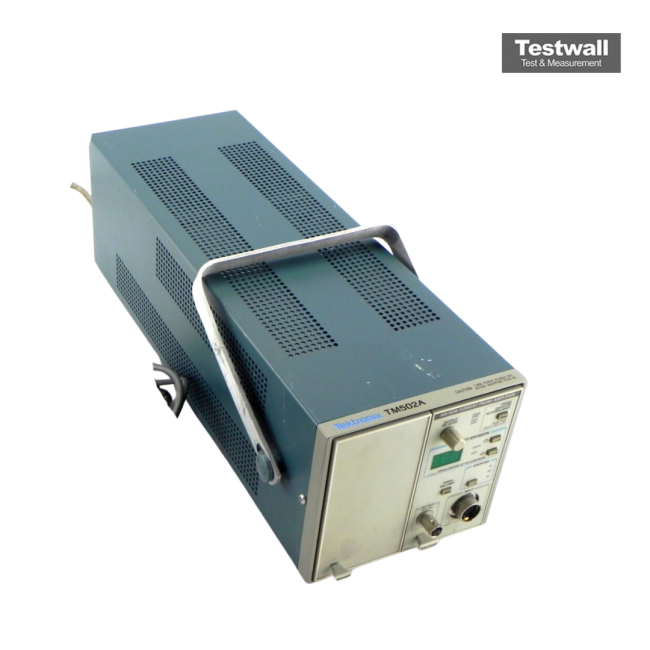

The Tektronix TM 502A is a two-slot power module designed for TM 500-series modular instrumentation, enabling seamless integration of up to two independently functioning plug-in modules
It delivers unregulated AC and DC power, featuring nondedicated power transistors for modular support
This unit is ideal for building cost-effective and compact test systems using TM 500 series modules, offering versatility and efficient power distribution in lab environments
Testwall can supply the used Tektronix TM 502A, fully tested
With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality
Please contact us directly if you need calibration or repair of the Tektronix TM 502A.
