Tektronix TPA-BNC

ManufacturerTektronix
ModelTPA-BNC
ProductTekVPI-BNC Interface Adapter
TypeUsed



Tektronix TMDP0200

Tektronix TMDP0200

Tektronix TPA-N-PRE

Tektronix TPA-N-PRE

Get Quote
SKU
144716

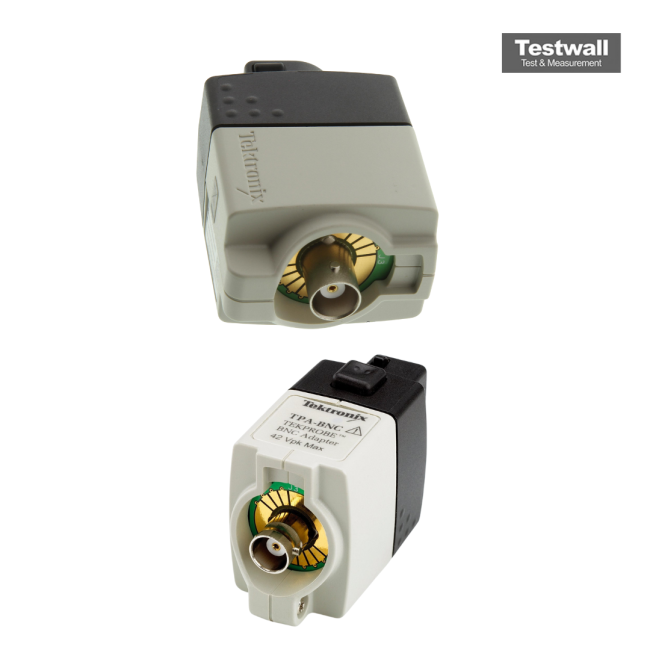

Tektronix TPA-BNC TekVPI Interface AdapterThe Tektronix TPA-BNC TekVPI™ Interface Adapter is an easy to use, plug-in adapter that enables TekProbe® products to connect to Oscilloscopes with TekVPI™ Probe Interface. Existing TekProbe-BNC probe types simply plug into the Tektronix TPA-BNC Adapter which is then plugged directly into any channel of an Oscilloscope equipped with the TekVPI probe interface.Features and Specifications of the TPA-BNC TekVPI Adapter include:
  • Features:
    • Easy to use Plug-in
    • Adapts existing TekProbe® interface products (active, diffeial, high-voltage, cur, and optical probes) with TekVPI™ Oscilloscopes
    • Provides a LED probe status indicator which identifies that the probe has powered-up successfully
    • Allows the Oscilloscope to sense the probe's attenuation scale factor and/or probe type
    • Provides signal coupling from the probe to the Oscilloscope
    • Supplies the necessary power, communication, and offset control as needed by the attached TekProbe product
    • Provides overcur and thermal overload protection for the attached TekProbe product
  • Specifications:
    • Bandwidth:  DC to >3 GHz
    • VSWR:
    • RF Insertion Loss:
    • Delay Time:  245 ps
    • Maximum Input Signal Voltage:  42 Vpk-pk, 30 VRMS, 60 VDC
  • Easy to use Plug-in
  • Adapts existing TekProbe® interface products (active, diffeial, high-voltage, cur, and optical probes) with TekVPI™ Oscilloscopes
  • Provides a LED probe status indicator which identifies that the probe has powered-up successfully
  • Allows the Oscilloscope to sense the probe's attenuation scale factor and/or probe type
  • Provides signal coupling from the probe to the Oscilloscope
  • Supplies the necessary power, communication, and offset control as needed by the attached TekProbe product
  • Provides overcur and thermal overload protection for the attached TekProbe product
  • Bandwidth:  DC to >3 GHz
  • VSWR:
  • RF Insertion Loss:
  • Delay Time:  245 ps
  • Maximum Input Signal Voltage:  42 Vpk-pk, 30 VRMS, 60 VDC
  •
