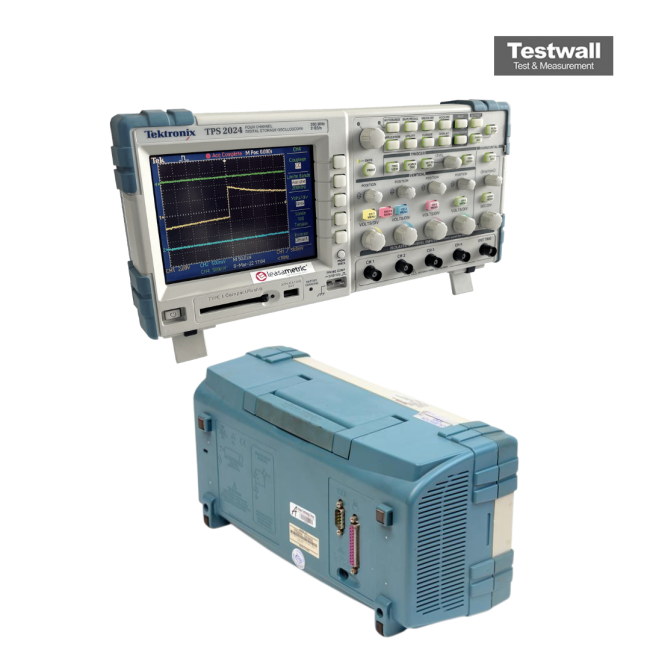

Tektronix TPS2024
| Attribute | Value |
|---|---|
| Bandwidth | 200 MHz |
| Number of Channels | 4 |
| Sample Rate | 2 GS/s (single channel), 1 GS/s (all channels) |
| Record Length | 2,500 points per channel |
| Vertical Resolution | 8 bits |
| Input Sensitivity Range | 2 mV/div to 5 V/div |
| Time Base Range | 5 ns/div to 50 s/div |
| Input Impedance | 1 MΩ in parallel with 20 pF |
| Display | 5.7-inch color LCD, 320 x 240 resolution |
| Power Source | Battery powered (TIPB1 battery pack) or AC adapter |
| Model | TPS2024 |
|---|
The Tektronix TPS2024 is a 200 MHz, 4-channel digital storage oscilloscope designed for safe and precise electrical testing. With 2 GS/s real-time sampling and 2.5k memory per channel, it supports detailed signal analysis. Fully isolated inputs enable floating measurements up to 600 VRMS.
Ideal for power, industrial, and automotive environments, it offers battery-powered portability, advanced triggering, built-in FFT, and CompactFlash data storage with OpenChoice PC connectivity.
Testwall can supply the used Tektronix TPS2024, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TPS2024.
