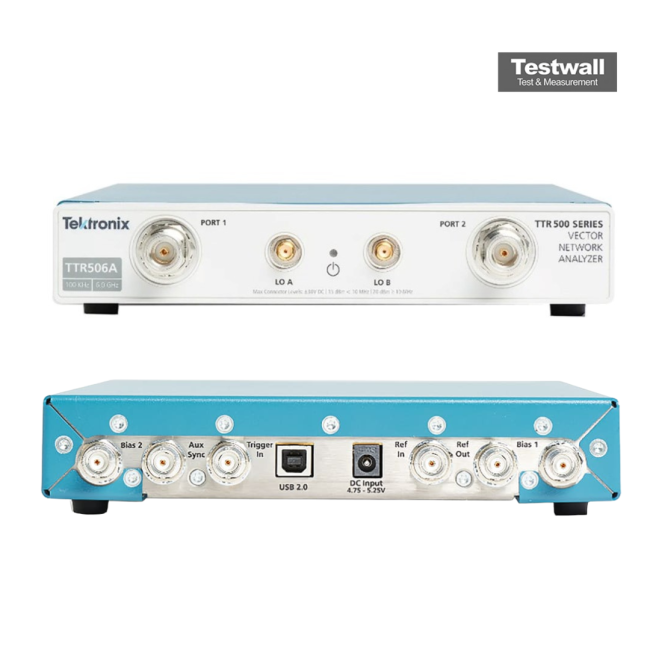

Tektronix TTR506A
| Attribute | Value |
|---|---|
| Frequency Range | 300 kHz to 6 GHz |
| Dynamic Range | Up to 120 dB |
| Number of Ports | 2-Port Vector Network Analyzer |
| Output Power Range | -40 dBm to +3 dBm |
| Measurement Parameters | S-parameters (S11, S21, S12, S22), impedance, admittance, and more |
| Interface/Connectivity | USB 3.0, connects to PC via USB for control and data transfer |
| Connector Type | N-Type (female) RF connectors |
| Trace Noise | <0.004 dB RMS |
| Software | Includes VectorVu-PC software for Windows-based operation |
| Power Supply | USB bus powered, no external power supply required |
Tektronix TTR506A Options:
- TTR506A - Opt. A0 - North America power plug (115 V, 60 Hz)
- TTR506A - Opt. A1 - Universal Euro power plug (220 V, 50 Hz)
- TTR506A - Opt. A2 - United Kingdom power plug (240 V, 50 Hz)
- TTR506A - Opt. A3 - Australia power plug (240 V, 50 Hz)
- TTR506A - Opt. A5 - Switzerland power plug (220 V, 50 Hz)
- TTR506A - Opt. A6 - Japan power plug (100 V, 50/60 Hz)
- TTR506A - Opt. A10 - China power plug (50 Hz)
- TTR506A - Opt. A11 - India power plug (50 Hz)
- TTR506A - Opt. A12 - Brazil power plug (60 Hz)
- TTR506A - Opt. A99 - No power cord
- TTR506A - Opt. C3 - Calibration Service 3 Years
- TTR506A - Opt. C5 - Calibration Service 5 Years
- TTR506A - Opt. D1 - Calibration Data Report
- TTR506A - Opt. D3 - Calibration Data Report 3 Years (with Opt. C3)
- TTR506A - Opt. D5 - Calibration Data Report 5 Years (with Opt. C5)
- TTR506A - Opt. G3 - Complete Care 3 Years (includes loaner, scheduled calibration, and more)
- TTR506A - Opt. G5 - Complete Care 5 Years (includes loaner, scheduled calibration, and more)
- TTR506A - Opt. R5 - Repair Service 5 Years (including warranty)
- TTR506A - Opt. R5DW - Repair Service Coverage 5 Years (includes product warranty period). 5-year period starts at time of instrument purchase
| Model | TTR506A |
|---|
The Tektronix TTR506A from the TTR500 series is a USB vector network analyzer offering full 2-port, 2-path S-parameter measurements (S11, S21, S12, S22) from 100KHz to 6GHz. With over 122dB dynamic range and <0.008dB RMS trace noise, it matches the performance of high-end benchtop VNAs. Compact and lightweight (1.59Kg), it includes a built-in bias tee on both ports, Tektronix VectorVu-PC software, API support, SCPI command interface, and Touchstone file compatibility.
Ideal for antenna tuning, RF component validation, and educational labs, the TTR506A supports offline simulation and provides precise vector network analysis through USB connectivity in a compact form factor.
Testwall can supply the used Tektronix TTR506A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TTR506A.
