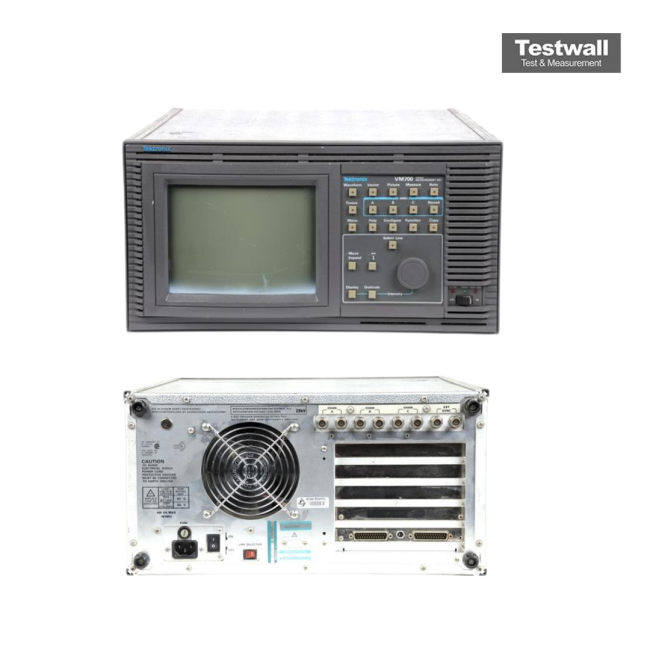

Tektronix VM700
| Attribute | Value |
|---|---|
| Video Standards Supported | NTSC, PAL, and SECAM |
| Measurement Channels | 2 active video input channels |
| Signal Bandwidth | DC to 6 MHz |
| Automatic Measurements | Over 100 automatic video measurements including luminance, chrominance, sync, and timing parameters |
| Display Type | Built-in high-resolution color monitor |
| Input Impedance | 75 ohms |
| Power Requirements | 90–250 VAC, 48–66 Hz, 300 W maximum |
| Operating Temperature | 0°C to +50°C (32°F to 122°F) |
| Storage Interface | Built-in floppy disk drive for data storage and software updates |
| Dimensions (H x W x D) | Approximately 177 mm x 426 mm x 552 mm (7 in x 16.75 in x 21.75 in) |
| Model | VM700 |
|---|
The Tektronix VM700 is a comprehensive video monitoring and measurement instrument capable of automatic and manual operations. It supports RS-250B/EIS-250C, NTC, and RS-170A standards, offers numeric and graphical display modes, and includes digital waveform monitor/vectoroscope and hard copy capabilities.
Ideal for signal quality verification and transmission path analysis, the VM700 provides alarm-based monitoring with user-defined thresholds and advanced graphic displays for signal-to-noise and group delay.
Testwall can supply the used Tektronix VM700, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix VM700.
