Tektronix VX4380
| Attribute | Value |
|---|---|
| Form Factor | VXIbus Mainframe Module |
| Number of Channels | 48 Channels |
| Switch Type | Matrix Switch Module |
| Voltage Rating | 300 V RMS |
| Current Rating | 1 A per Channel |
| Frequency Range | DC to 10 MHz |
| Contact Resistance | Less than 1 Ohm |
| Insulation Resistance | Greater than 10^9 Ohms |
| VXI Slot Size | C-Size, Single Slot |
| Operating Temperature | 0°C to 55°C |
| Model | VX4380 |
|---|

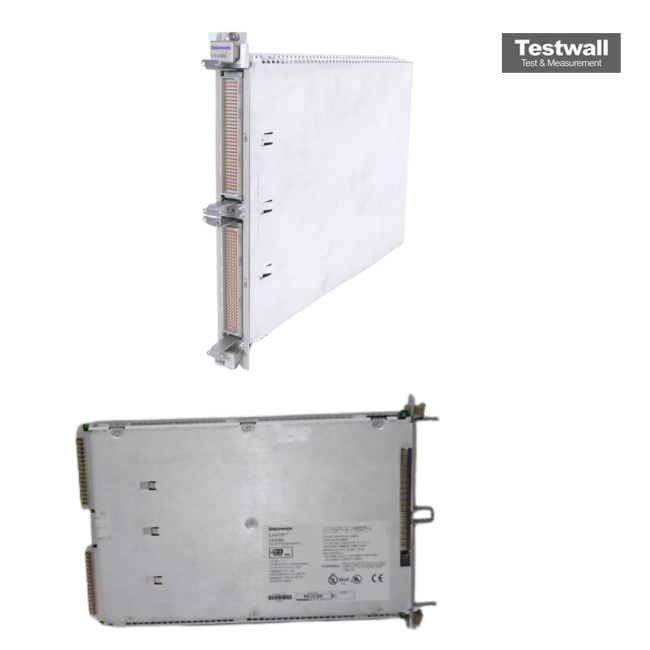

The Tektronix VX4380 256 Crosspoint Relay Matrix Module offers 256 crosspoints for flexible signal routing in automated test systems. Designed for high reliability, it supports a wide frequency range and precise signal control. The module’s compact design ensures efficient integration into VXI systems while maintaining excellent performance and durability.
Ideal for high-density switching applications, it enables complex test configurations with minimal crosstalk and high isolation. Suitable for manufacturing and R&D environments requiring repeatable measurements.
Testwall can supply the used Tektronix VX4380 256 Crosspoint Relay Matrix Module, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix VX4380 256 Crosspoint Relay Matrix Module.
