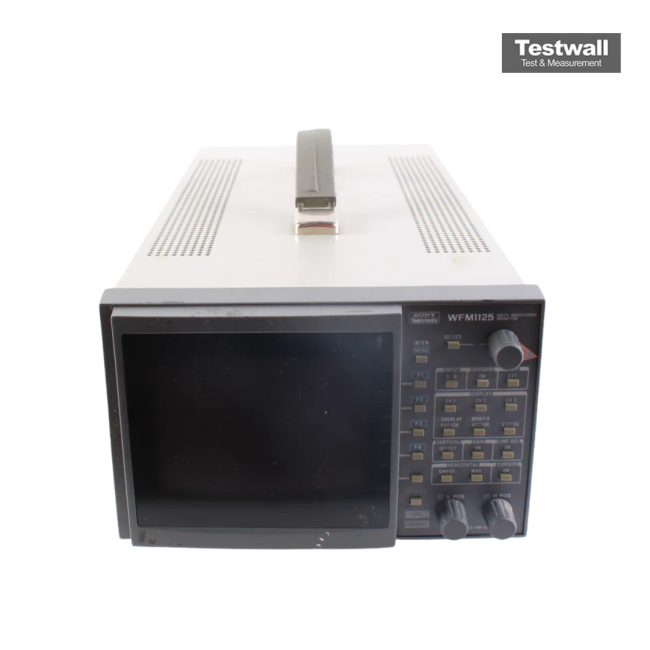

Tektronix WFM1125
| Attribute | Value |
|---|---|
| Form Factor | Half-rack, portable waveform monitor |
| Display Type | 3.5-inch LCD color display |
| Video Standards Supported | SD (Standard Definition) composite and component video signals |
| Input Connectors | BNC connectors for composite and component video inputs |
| Waveform Display Modes | Waveform, vectorscope, and picture display modes |
| Signal Formats | NTSC and PAL analog video formats |
| Power Supply | Universal AC power input, 100–240 VAC, 50/60 Hz |
| Power Consumption | Approximately 20 W maximum |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Dimensions (H x W x D) | Approximately 88 mm x 213 mm x 267 mm (3.5 in x 8.4 in x 10.5 in) |
Tektronix WFM1125 Options:
- WFM1125 - 0A - Configured for operation with SMPTE 274M, 1920x1080i video with embedded AES/EBU audio
- WFM1125 - 0B - Configured for operation with SMPTE 296M, 1280x720p video. Embedded audio is not extracted with this option
- WFM1125 - 0C - Configured for dual standard operation with SMPTE 274M, 1920x1080i, or SMPTE 296M, 1280x720p video. AES/EBU audio is extracted only in SMPTE 274M video format
- WFM1125 - 0D - Configured for multi-standard operation; 1920x1080i/60(59.94), 1280x720p/60 (59.94), 1920x1080i/50, 1920x1080p/24(23.98), 1920x1080/24(23.98)sF. AES/EBU audio is extracted in 1920x1080i/60(59.94) video format
- WFM1125 - A1 - Universal Euro power cord
- WFM1125 - A2 - United Kingdom power cord
- WFM1125 - A3 - Australia power cord
- WFM1125 - A5 - Switzerland power cord
| Model | WFM1125 |
|---|
The Tektronix WFM1125 is a high-definition waveform monitor supporting SMPTE292M, with digital architecture for accurate signal display across multiple HDTV formats including 1035/60i, 1080/59.94i, and 720/60p. It features advanced display modes like Diamond, Lightning, and Bowtie, internal memory for waveform storage, and persistence display for transient signal analysis.
Options 0A to 0D expand format support and monitoring capabilities, including CRC and Gamut error detection, analog reference input, digital audio output, and vector, parade, and overlay displays for in-depth signal inspection.
Testwall can supply the used Tektronix WFM1125, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix WFM1125.
