Tektronix WFM4000
| Attribute | Value |
|---|---|
| Display Type | 5.7-inch color LCD |
| Display Resolution | 320 x 240 pixels |
| Video Standards Supported | SD (Standard Definition) analog and digital video formats including NTSC, PAL, and SECAM |
| Signal Inputs | 4 x passive loop-through inputs for composite, component, and serial digital signals |
| Audio Monitoring | Supports analog and digital audio monitoring including AES/EBU and embedded audio |
| Waveform Display Modes | Waveform, vectorscope, parade, and picture display modes |
| Serial Digital Interface | SD-SDI (SMPTE 259M) support at 270 Mb/s |
| Power Requirements | 100–240 VAC, 50/60 Hz, approximately 30 W maximum power consumption |
| Form Factor | Half-rack, 3U rackmount or portable/benchtop configuration |
| Operating Temperature | 0°C to +50°C (32°F to 122°F) |
| Model | WFM4000 |
|---|

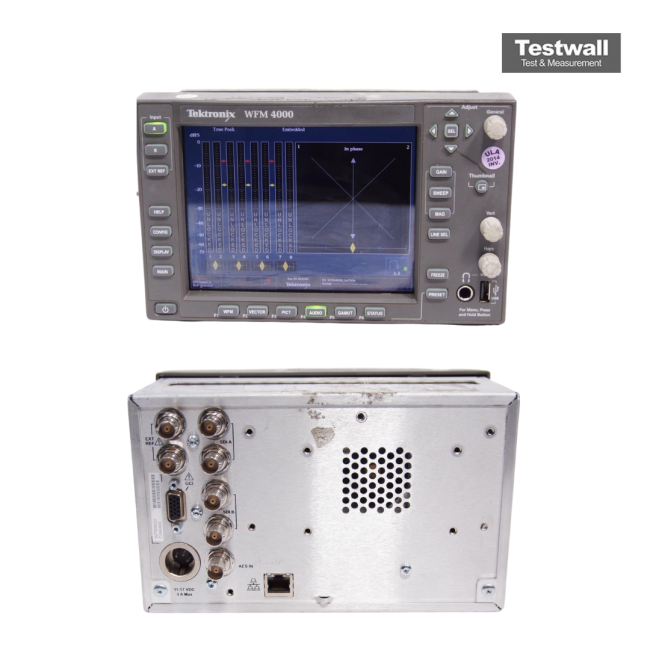

The Tektronix WFM4000 SD-SDI Compact Waveform Monitor delivers precise SD-SDI signal monitoring in a compact form, featuring high-accuracy waveform, vector, and picture display capabilities. It supports comprehensive error detection and measurement tools, ensuring reliable signal analysis for broadcast and production environments. The monitor’s intuitive interface and sharp display make signal evaluation fast and efficient.
Ideal for studio, OB van, and field production, the WFM4000 offers advanced SD-SDI compliance monitoring with robust diagnostic features. Its portability ensures it can be deployed wherever critical signal verification is required.
Testwall can supply the used Tektronix WFM4000 SD-SDI Compact Waveform Monitor, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix WFM4000 SD-SDI Compact Waveform Monitor.
