Tektronix WFM5200
| Attribute | Value |
|---|---|
| Display | 5-inch high-resolution LCD display, 800 x 480 pixels |
| Video Standards Supported | SD, HD, and 3G-SDI (SMPTE 259M, 292M, 424M) |
| SDI Input | 4 x SDI inputs (2 x BNC connectors) with auto-detection |
| Audio Monitoring | Supports up to 16 channels of embedded SDI audio, AES/EBU audio monitoring |
| Waveform Display Modes | Waveform, Vector, Parade, Overlay, Diamond, Split Diamond, Arrowhead, Lightning |
| Eye Pattern and Jitter | Optional eye pattern and jitter measurement for SDI signal integrity analysis |
| Gamut Monitoring | Composite gamut, RGB gamut, and luma gamut monitoring with alarms |
| Closed Captioning | Supports CEA-608 and CEA-708 closed caption monitoring and decode |
| Power Requirements | 100–240 VAC, 50/60 Hz, maximum 30 W power consumption |
| Dimensions and Weight | Approximately 144.8 mm (H) x 213.4 mm (W) x 152.4 mm (D); approximately 2.5 kg (5.5 lbs) |
| Model | WFM5200 |
|---|

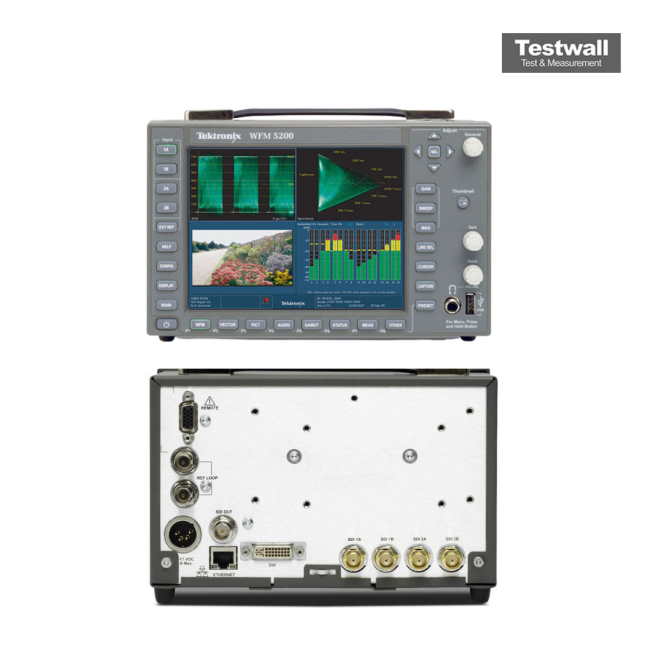

The Tektronix WFM5200 Multiformat Multistandard Compact Waveform Monitor is a versatile and compact waveform monitor designed for multiformat and multistandard video analysis. It supports SD, HD, and 3G-SDI formats, delivering precise signal measurement with advanced monitoring features. The unit offers comprehensive error detection, in-depth data analysis, and intuitive displays for efficient broadcast and production workflows, making it suitable for both operational and engineering environments.
Ideal for studio, post-production, and live broadcast applications, the WFM5200 ensures accurate signal quality control. Its compact design and user-friendly interface optimize operational efficiency in demanding production settings.
Testwall can supply the used Tektronix WFM5200 Multiformat Multistandard Compact Waveform Monitor, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix WFM5200 Multiformat Multistandard Compact Waveform Monitor.
