Tektronix WFM700HD
| Attribute | Value |
|---|---|
| Signal Formats Supported | HD (1080i, 1080p, 720p), SD (525i, 625i), and dual-link HD signals |
| Display Type | 6.5-inch high-resolution color LCD display |
| Display Resolution | 640 x 480 pixels |
| Input Impedance | 75 Ω |
| SDI Input Return Loss | ≥15 dB up to 1.485 GHz |
| Waveform Display Modes | Parade, Overlay, RGB, YPbPr, and composite waveform monitoring |
| Audio Monitoring | Supports embedded audio (AES/EBU), up to 16 channels with Dolby E/D decoding option |
| Gamut Monitoring | Diamond, Arrowhead, and Spearhead gamut displays for HD and SD signals |
| Power Requirements | 100–240 VAC, 50/60 Hz, approximately 60 W maximum |
| Form Factor | Half-rack portable/rackmountable unit, 3U rack height with optional rack adapter |
Tektronix WFM700HD Multi-format Waveform Monitor Options:
- WFM700HD - 01 - Cabinet; Portable Cabinet With Case, Handle And Feet
- WFM700HD - 02 - Rackmount; Dual Side By Side Rackmount For 1700 Series, Wfm601 Series And Wfm700 Series
- WFM700HD - 2A - Serial Digital Monitoring Module For Itu-R Bt.601 And Smpte 292M
- WFM700HD - 2HD - Serial Digital Monitoring Module For Smpte 292M
- WFM700HD - 2M - Serial Digital Measurement Module For Itu-R Bt.601 And Smpte 292M
- WFM700HD - DG - Aes/Ebu Digital Audio Monitoring Module
| Model | WFM700HD |
|---|

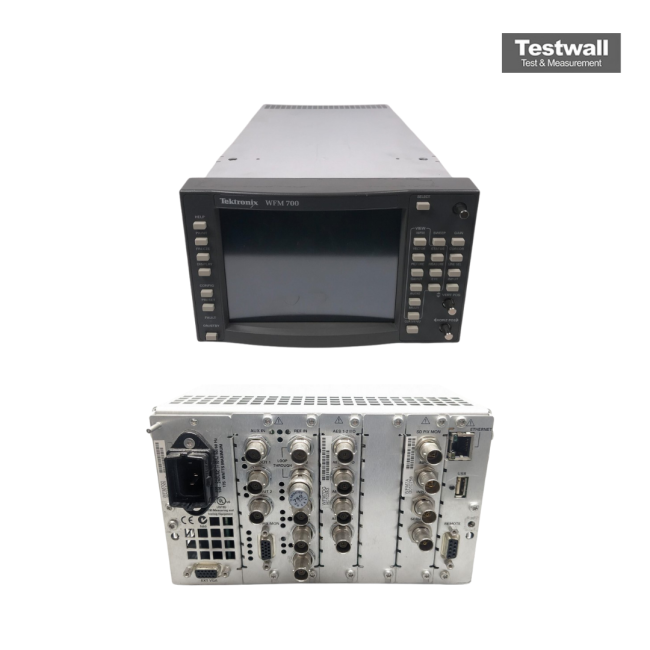

The Tektronix WFM700HD Multi-format Waveform Monitor offers precise multi-format waveform monitoring, supporting HD, SD, and 3G-SDI formats with high accuracy. It features a crisp LCD display, customizable graticules, and multiple input configurations to ensure detailed video signal analysis for professional broadcast environments.
Ideal for post-production, live broadcasting, and quality control, this unit delivers consistent performance across multiple video formats, ensuring compliance with technical standards.
Testwall can supply the used Tektronix WFM700HD Multi-format Waveform Monitor, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix WFM700HD Multi-format Waveform Monitor.
