Tektronix WFM7120

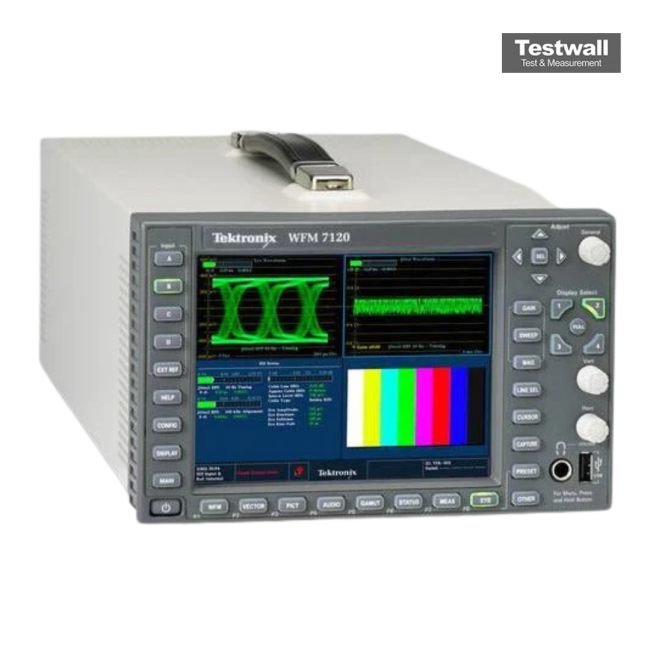

Tektronix WFM7120 Waveform Monitor
SD, HD, 3 Gb/s SMPTE 424M, dual-link HD (SMPTE 372M), composite analog Input Signal Formats
SMPTE 259M, SMPTE 292M, SMPTE 424M, SMPTE 372M, ITU-R BT.656, ITU-R BT.1120 Video Standards Supported
4 inputs (SDI A, SDI B, SDI C, SDI D) Number of SDI Inputs
Waveform, Vector, Gamut, Audio, Datalist, Picture, Timing, Eye diagram (with options) Display Modes
Embedded audio (up to 16 channels), AES/EBU audio, analog audio (with options) Audio Monitoring
| Attribute | Value |
|---|---|
| Input Signal Formats | SD, HD, 3 Gb/s SMPTE 424M, dual-link HD (SMPTE 372M), composite analog |
| Video Standards Supported | SMPTE 259M, SMPTE 292M, SMPTE 424M, SMPTE 372M, ITU-R BT.656, ITU-R BT.1120 |
| Number of SDI Inputs | 4 inputs (SDI A, SDI B, SDI C, SDI D) |
| Display Modes | Waveform, Vector, Gamut, Audio, Datalist, Picture, Timing, Eye diagram (with options) |
| Audio Monitoring | Embedded audio (up to 16 channels), AES/EBU audio, analog audio (with options) |
| Gamut Monitoring | Diamond display, Split Diamond, Arrowhead display for composite gamut checking |
| Eye and Jitter Measurement | Eye pattern display, jitter measurement (timing and alignment jitter) with Option EYE/PHY |
| Reference Input | External reference: analog black burst or tri-level sync, loop-through with 75-ohm termination |
| Connectivity and Interface | Ethernet (RJ-45), USB ports, XGA video output, remote control via Ethernet |
| Power Requirements | 100–240 VAC, 50/60 Hz, maximum 150 W power consumption |
Tektronix WFM7120 Options:
- WFM7120 - SD - Standard Definition SDI (Standard on all units)
- WFM7120 - CPS - Add support for monitoring NTSC/PAL composite analog video, 2 inputs with passive loopthrough outputs
- WFM7120 - HD - Add support for monitoring High Definition digital video formats, 2 auto-sensing SDI inputs with switched output of selected input
- WFM7120 - 3G - Support for Single Link 3G SDI
- WFM7120 - DL - Adds Full Dual Link Support
- WFM7120 - SIM - Adds support for Simultaneous Chan 1, Chan 2 Inputs
- WFM7120 - AVD - Adds support for AV Delay Measurements (Requires signals provided from the TG700 with either the DVG7 or an HDVG7 module with A/V Timing Mode enabled)
- WFM7120 - AD - Add support for monitoring digital audio, embedded, and AES/EBU inputs, up to 8 AES/EBU inputs (16 channels), up to 4 AES/EBU outputs (8 channels) capabilities available, plus support for monitoring analog audio, up to 12 analog audio inputs, up to 8 analog audio outputs
- WFM7120 - DDE - Add capabilities available in Option AD, plus support for monitoring Dolby Digital (AC-3) and Dolby-E
- WFM7120 - EYE - Add support for Eye diagrams, jitter measurement, cable parameter measurements
- WFM7120 - PHY - Add capabilities available on Option EYE, plus jitter waveform and Eye parameter measurements
- WFM7120 - DAT - Add in-depth video data and ancillary data analysis
- WFM7120 - IT - Adds Jitter Measurement Capability
- WFM7120 - NRC - No portable cabinet or rack cabinet
- WFM7120 - 01 - Portable cabinet (same as WFM7F02)
- WFM7120 - 02 - Dual rack cabinet (same as WFM7F05 option NN)
- WFM7120 - 05 - Dual rack cabinet (same as WFM7F05 option ON)
- WFM7120 - 62 - Analog audio breakout cable, 6 feet, male 62 pin connector to 8 XLR male output connectors and 12 XLR female input connectors
- WFM7120 - CA1 - Provides a single calibration event or coverage for the designated calibration interval, whichever comes first
- WFM7120 - C3 - Calibration service 3 Years
- WFM7120 - C5 - Calibration service 5 Years
- WFM7120 - D1 - Calibration data report
- WFM7120 - D3 - Calibration data report 3 Years (with option C3)
- WFM7120 - D5 - Calibration data report 5 Years (with option C5)
- WFM7120 - R3 - Repair service 3 years (including warranty)
- WFM7120 - R5 - Repair service 5 years (including warranty)
- WFM7120 - A0 - Power connection – North America
- WFM7120 - A1 - Power connection – Universal Euro
- WFM7120 - A2 - Power connection – United Kingdom
- WFM7120 - A3 - Power connection – Australia
- WFM7120 - A4 - Power connection – 240 V, North America
- WFM7120 - A5 - Power connection – Switzerland
- WFM7120 - A6 - Power connection – Japan
- WFM7120 - A10 - Power connection – China
- WFM7120 - A99 - Power connection – No power cord or AC adapter
- WFM7120 - L0 - English Manual
- WFM7120 - L5 - Japanese Manual
- WFM7120 - L7 - Simplified Chinese Manual
| Model | WFM7120 |
|---|
The Tektronix WFM7120 is a high-performance HD-capable waveform monitor providing comprehensive digital video and audio signal analysis. It integrates features from the WFM7020 and expands with options like Dolby audio (Opt. DDE), advanced data analysis (Opt. DAT), SDI signal monitoring, and AV Delay Measurement (Opt. AVD). Additional capabilities include Simultaneous A/B Input Monitoring (Opt. SIM) and Dual Link Monitoring (Opt. DL).
Ideal for HD video production and broadcast environments, the WFM7120 ensures precise signal evaluation with enhanced diagnostics for Dolby and SDI workflows.
Testwall can supply the used Tektronix WFM7120, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix WFM7120.
