Tektronix WFM7200
| Attribute | Value |
|---|---|
| Input Signal Formats | 3G-SDI, HD-SDI, SD-SDI, Dual Link HD-SDI, Composite (NTSC/PAL) |
| Display Type | 8.4-inch color LCD with 1024 x 768 resolution |
| Waveform Display Modes | Waveform, Vector, Parade, Overlay, Picture, Audio, Datalist, Gamut |
| Audio Monitoring | Embedded audio (up to 16 channels), AES/EBU, Dolby E/D/D+ decoding (optional) |
| Gamut Monitoring | Diamond, Split Diamond, Arrowhead displays for composite and component gamut checking |
| Eye Pattern and Jitter Analysis | SDI physical layer monitoring with eye diagram display, jitter measurement (timing and alignment jitter) |
| Closed Caption / Ancillary Data | Supports CEA-608, CEA-708 closed captioning; ancillary data inspection and logging |
| Reference Input | Black Burst and Tri-Level Sync external reference inputs for synchronization |
| Connectivity / Interface | Ethernet (RJ-45) for remote control and monitoring, USB ports, rear-panel SDI loop-through outputs |
| Power Requirements | 100–240 VAC, 50/60 Hz, approximately 80 W maximum power consumption |
| Model | WFM7200 |
|---|

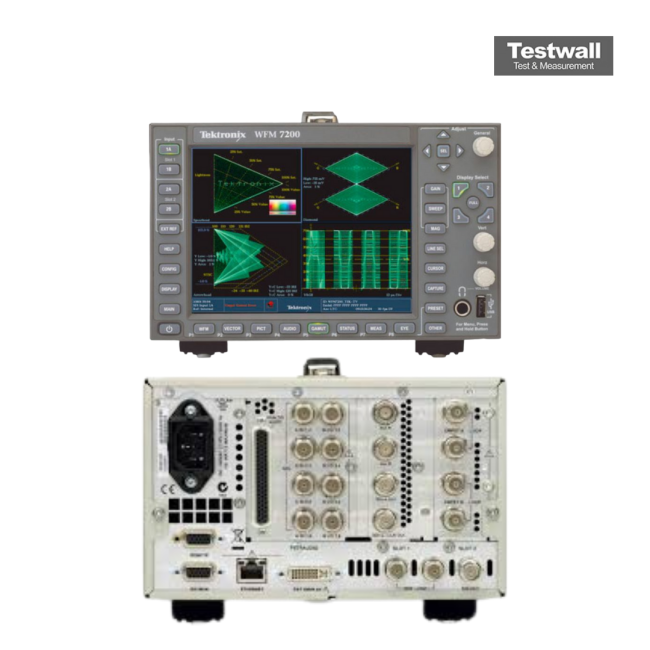

The Tektronix WFM7200 is a versatile all-in-one video, audio, and data monitor/analyzer, supporting advanced field upgrade capabilities for evolving broadcast environments
It handles a broad array of video formats including 3G-SDI, Dual Link, HD-SDI, and composite analog, offering precise signal fidelity and format flexibility for professional applications
This unit also accommodates multiple audio standards, from Dolby E, Dolby Digital Plus, and Dolby Digital to AES/EBU, embedded audio, and analog formats, ensuring comprehensive audio monitoring for complex workflows
Testwall can supply the used Tektronix WFM7200, fully tested
With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality
Please contact us directly if you need calibration or repair of the Tektronix WFM7200.
