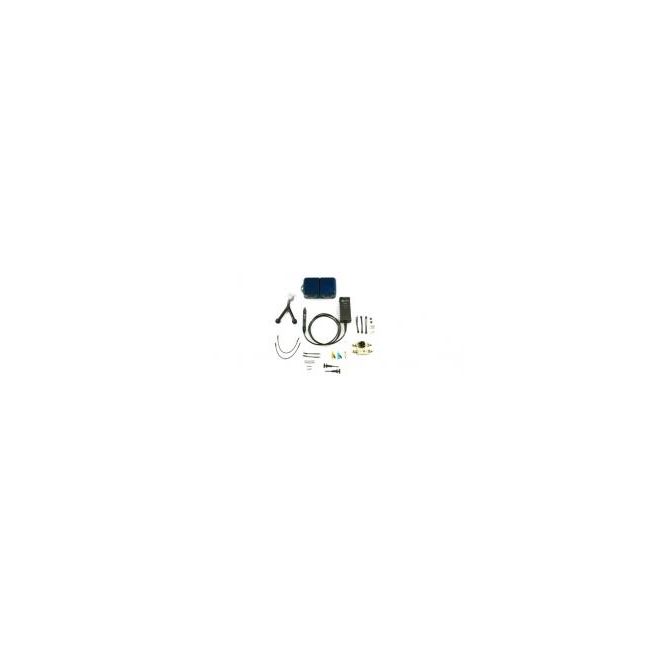

Teladyne LeCroy ZD1000
| Attribute | Value |
|---|---|
| Bandwidth | 1 GHz |
| Differential Voltage Range | ±15 V |
| Maximum Input Voltage | ±700 V (DC + Peak AC) |
| CMRR (Common Mode Rejection Ratio) | 90 dB at 1 MHz |
| Input Impedance | 1 MΩ, 2 pF per input |
| Attenuation Ratio | 1:10 / 1:100 selectable |
| Rise Time | 350 ps |
| Output Connector | SMA |
| Power Supply | Powered via USB or external DC supply |
| Operating Temperature | 0°C to 50°C |
Teladyne LeCroy ZD1000 Options:
- ZD1000 - PACC-ZD001 - Y Lead Adapter, Qty 1
- ZD1000 - PACC-ZD002 - Solder-In Lead, Qty 2
- ZD1000 - PACC-ZD003 - Long Spring Loaded Bendable Ground, Qty 2
- ZD1000 - PACC-ZD004 - Tip Saver, Qty 2
- ZD1000 - PACC-ZD005 - Swivel Tip Adapter
- ZD1000 - PACC-ZD006 - Small IC Adapter, Qty 2
- ZD1000 - PACC-ZD009 - Micro Pogo Pin Tip, Qty 6
- ZD1000 - PACC-LD003 - Right Angle Connector Short, Qty 2
- ZD1000 - PACC-LD004 - Right Angle Connector Long, Qty 2
- ZD1000 - PK006-4 - Micrograbber, Qty 2
- ZD1000 - PACC-CL001 - Minigrabber, Qty 2
- ZD1000 - PACC-CD008 - Short Spring Loaded Bendable Ground, Qty 2
- ZD1000 - PCF200 - Probe Calibration Fixture, Qty 1
- ZD1000 - PK111 - ZD Replacement Kit
- ZD1000 - PACC-MS001 - Hands Free Probe Holder, Qty 1
| Model | ZD1000 |
|---|
The Teledyne LeCroy ZD1000 is an active differential oscilloscope probe with a 1 GHz bandwidth and 10:1 attenuation, featuring only 1 pF input capacitance and a high 1 MΩ input impedance. It supports ±18 Vp-p differential input and ±8 V offset, ensuring minimal signal loading and superior accuracy.
With its low-noise architecture and excellent common-mode rejection, this probe is ideal for precise differential measurements. Full ProBus integration enables seamless operation with MAUI oscilloscopes without external power.
Testwall can supply the used Teledyne LeCroy ZD1000, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Teledyne LeCroy ZD1000.
