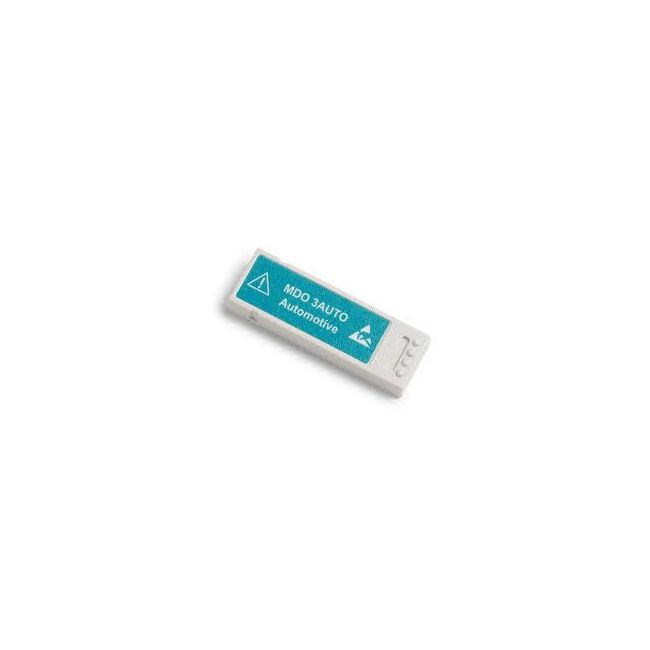

Tektronix MDO3AUTO
| Attribute | Value |
|---|---|
| Compatible Oscilloscope Series | Tektronix MDO3000 Series |
| Application Module Type | Automotive Serial Triggering and Analysis Module |
| Supported Protocols | CAN, LIN, FlexRay |
| Triggering Capability | Protocol-specific triggering on CAN, LIN, and FlexRay bus signals |
| Decode and Search | Automated decode, search, and mark of automotive serial bus packets |
| Bus Activity Display | Color-coded bus waveform overlay with decoded packet data |
| Error Detection | Detects and triggers on protocol errors including CRC, bit stuffing, and framing errors |
| Data Logging | Search across acquired waveform records for specific packet content or error conditions |
| Installation Method | Plug-in application module installed directly into MDO3000 oscilloscope |
| License Type | Hardware key module (no software license required; functionality enabled upon module insertion) |
| Model | MDO3AUTO |
|---|
The Tektronix MDO3AUTO adds powerful automotive serial bus analysis to MDO3000-series oscilloscopes, supporting CAN, CAN FD, and LIN protocols. It enables packet-level triggering, real-time decoding, and timestamped event analysis with full integration of analog and digital inputs.
This module allows comprehensive debugging with search filters, live decode, and correlation of physical and protocol-layer signals, ideal for engineers working on automotive networks.
Testwall can supply the used Tektronix MDO3AUTO, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix MDO3AUTO.
