Teledyne LeCroy WAVEPRO7100
| Attribute | Value |
|---|---|
| Bandwidth | 1 GHz |
| Sample Rate | 20 GS/s (single channel), 10 GS/s (all channels) |
| Number of Channels | 4 |
| Memory Depth | up to 100 Mpts/ch (with memory option) |
| Vertical Resolution | 8 bits |
| Input Impedance | 50 Ω or 1 MΩ |
| Timebase Range | 200 ps/div to 1000 s/div |
| Display | 10.4-inch color LCD touchscreen |
| Trigger Types | Edge, Width, Glitch, Pattern, TV, Serial Data, and more |
| Connectivity / Interfaces | USB, Ethernet (LAN), GPIB (optional), CompactFlash |
Teledyne LeCroy WAVEPRO7100 Options:
- WAVEPRO7100 - -M - Memory Option: 8 Mpts/2 Ch, 4 Mpts/Ch
- WAVEPRO7100 - -L - Memory Option: 16 Mpts/2 Ch, 8 Mpts/Ch
- WAVEPRO7100 - -VL - Memory Option: 32 Mpts/2 Ch, 16 Mpts/Ch
- WAVEPRO7100 - -XL - Memory Option: 48 Mpts/2 Ch, 24 Mpts/Ch
- WAVEPRO7100 - GPIB-1 - IEEE-488 Remote Control Interface
- WAVEPRO7100 - WM-RHD - Removable Hard Drive Option
- WAVEPRO7100 - WM-CDRW - CD-RW Upgrade
- WAVEPRO7100 - CANbus TD - CAN Bus Trigger and Decode Test Package
- WAVEPRO7100 - DDM2 - Disk Drive Measurement Package
- WAVEPRO7100 - DFP2 - Digital Filter Package
- WAVEPRO7100 - ENET - Ethernet Test Software Package
- WAVEPRO7100 - JTA2 - Jitter and Timing Analysis Package
- WAVEPRO7100 - LECROYM1/ADV-1 - Advanced M1 Software Package for Jitter and Timing Measurements (1 seat)
- WAVEPRO7100 - LECROYM1/BASIC - Basic M1 Software Package for Jitter and Timing Measurements
- WAVEPRO7100 - PMA2 - Power Measure and Analysis Package
- WAVEPRO7100 - SDM - Serial Mask Package
- WAVEPRO7100 - USB2 - USB 2.0 Pre-Compliance Test Software Package
- WAVEPRO7100 - XDEV - Advanced Customization Package
- WAVEPRO7100 - XMAP - Master Analysis Package (includes JTA2, XMATH, XDEV)
- WAVEPRO7100 - XMATH - Advanced Math Software Package
- WAVEPRO7100 - AV - AntiVirus Software
| Model | WAVEPRO7100 |
|---|

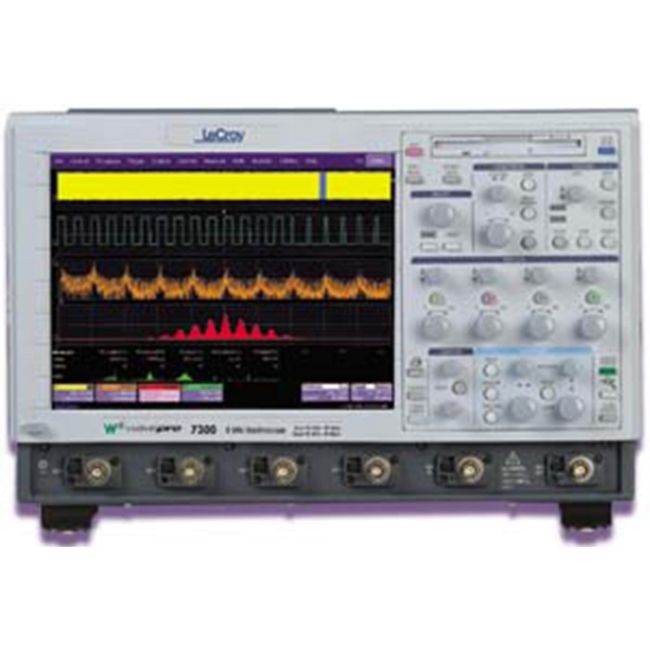

The Teledyne LeCroy WavePro 7100 is a high-performance oscilloscope featuring 1 GHz analog bandwidth and a real-time sample rate of 10 GS/s. It provides deep memory up to 10 Mpts and a 12.1” intuitive touchscreen interface for smooth operation, ensuring superior waveform clarity and acquisition speed in demanding test scenarios.
Engineered for precision, the WavePro 7100 is ideal for advanced automotive, telecom, and power electronics applications, where accuracy, fast sampling, and clear visualization are essential for reliable results.
Testwall can supply the used Teledyne LeCroy WavePro 7100, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Teledyne LeCroy WavePro 7100.
