Teledyne LeCroy WAVEPRO725ZI
| Attribute | Value |
|---|---|
| Bandwidth | 2.5 GHz |
| Sample Rate | 20 GS/s |
| Number of Channels | 4 |
| Memory Depth | 128 Mpts/ch (256 Mpts interleaved) |
| Vertical Resolution | 8-bit (up to 11-bit with enhanced resolution) |
| Input Impedance | 50 Ω / 1 MΩ |
| Timebase Range | 200 ps/div to 160 s/div |
| Display | 12.1-inch color LCD touchscreen |
| Connectivity | USB, Ethernet (LAN), GPIB (optional) |
| Operating System | Windows 7 Embedded |
Teledyne LeCroy WAVEPRO725ZI Options:
- WAVEPRO725ZI - WPZi-S-32 - 32 Mpts/Ch (64 Mpts/Ch Interleaved) Memory Option for WavePro 7 Zi. Includes an additional 2 GB of RAM (4 GB total)
- WAVEPRO725ZI - WPZi-M-64 - 64 Mpts/Ch (128 Mpts/Ch Interleaved) Memory Option for WavePro 7 Zi. Includes an additional 6 GB of RAM (8 GB total)
- WAVEPRO725ZI - WPZi-L-128 - 128 Mpts/Ch (256 Mpts/Ch Interleaved) Memory Option for WavePro 7 Zi. Includes an additional 6 GB of RAM (8 GB total)
- WAVEPRO725ZI - WPZi-2-UPG-8GBRAM - Upgrade from 2 GB to 8 GB CPU RAM
- WAVEPRO725ZI - WPZi-4-UPG-8GBRAM - Upgrade from 4 GB to 8 GB CPU RAM
- WAVEPRO725ZI - WPZi-200GB-HD - Upgrade from Standard Size Hard Drive to 200 GB Hard Drive
- WAVEPRO725ZI - WPZi-80GB-RHD-02 - Additional 80 GB Hard Drive
- WAVEPRO725ZI - WPZi-200GB-RHD-02 - Additional 200 GB Hard Drive
- WAVEPRO725ZI - GPIB-2 - GPIB Option for LeCroy Oscilloscope
- WAVEPRO725ZI - WPZi-MSPT - 1.25 Gb/s Medium-speed Serial Pattern Trigger Option for 2.5–3.5 GHz Oscilloscopes
- WAVEPRO725ZI - WPZi-I2Cbus TD - I2C Bus Trigger and Decode Option
- WAVEPRO725ZI - WPZi-SPIbus TD - SPI Bus Trigger and Decode Option
- WAVEPRO725ZI - WPZi-LINbus TD - LIN Trigger and Decode Option
- WAVEPRO725ZI - WPZi-UART-RS232bus TD - UART and RS-232 Trigger and Decode Option
- WAVEPRO725ZI - WPZi-FlexRayBus TD - FlexRay Trigger and Decode Option
- WAVEPRO725ZI - WPZi-FlexRayBus TDP - FlexRay Bus Trigger, Decode, and Physical Layer Test Option
- WAVEPRO725ZI - WPZi-CANbus TDM - CANbus TDM Trigger, Decode and Measure/Graph Option
- WAVEPRO725ZI - WPZi-CANbus TD - CANbus TD Trigger and Decode Option
- WAVEPRO725ZI - QPHY-ENET - Ethernet Application Software
- WAVEPRO725ZI - QPHY-USB - USB Application Software
- WAVEPRO725ZI - QPHY-PCIe - PCIe Gen1 Compliance and Development Software Package
- WAVEPRO725ZI - QPHY-SATA - QualiPHY Enabled SATA Software Option
- WAVEPRO725ZI - QPHY-UWB - WiMedia UWB Transmitter Measurement Software Option
- WAVEPRO725ZI - WPZi-EYEDR - Eye Doctor (Virtual Probe and Equalizer emulation) Bundle
- WAVEPRO725ZI - WPZi-EYEDR-VP - Eye Doctor Virtual Probing Element
- WAVEPRO725ZI - WPZi-EYEDR-EQ - Eye Doctor Equalized Receiver Emulation
- WAVEPRO725ZI - LSIB-1 - High-speed PCIe Gen1 x4 Digitizer Output
- WAVEPRO725ZI - MS-500 - 500 MHz, 2 GS/s, 18 Ch, 50 Mpts/Ch Mixed Signal Oscilloscope Option
- WAVEPRO725ZI - MS-500-36 - 250 MHz, 1 GS/s, 36 Ch, 25 Mpts/Ch Mixed Signal Oscilloscope Option
- WAVEPRO725ZI - MS-250 - 250 MHz, 1 GS/s, 18 Ch, 10 Mpts/Ch Mixed Signal Oscilloscope Option
- WAVEPRO725ZI - WPZi-XDEV - Advanced Customization Software Package
- WAVEPRO725ZI - WPZi-SPECTRUM - Spectrum Analyzer and Advanced FFT Option
- WAVEPRO725ZI - WPZi-EMC - EMC Pulse Parameter Software Package
- WAVEPRO725ZI - WPZi-SDM - Serial Data Mask Software Package
- WAVEPRO725ZI - WPZi-AORM - Advanced Optical Recording Measurement Package
- WAVEPRO725ZI - WPZi-DMOD - Demodulation Software Package
- WAVEPRO725ZI - WPZi-JTA2 - Jitter Timing and Analysis Software Package
- WAVEPRO725ZI - WPZi-DFP2 - Digital Filter Software Package
- WAVEPRO725ZI - WPZi-DDM2 - Disk Drive Measurements Software Package
- WAVEPRO725ZI - WPZi-ET-PMT - Electrical Telecom Mask Test Software Package
| Model | WAVEPRO725ZI |
|---|

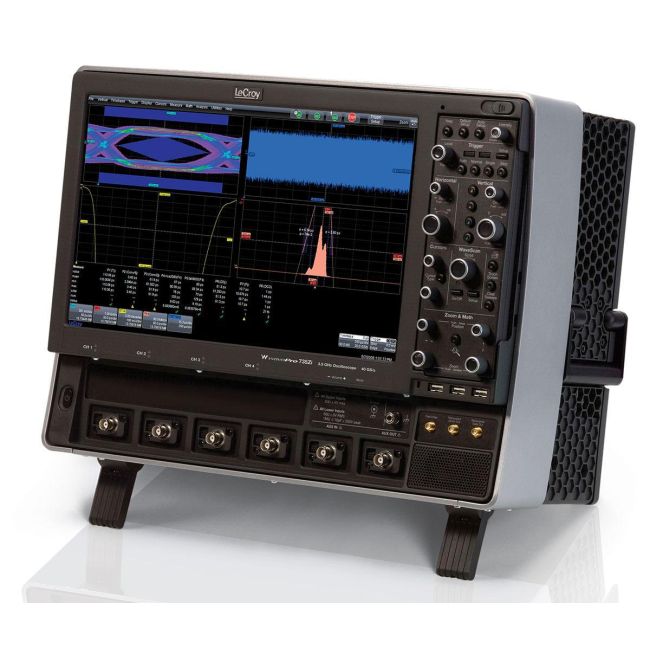

The Teledyne LeCroy WavePro 725Zi, part of the advanced Zi series, builds on the 7200A platform with X-Stream II architecture for enhanced speed and accuracy. It offers 2 GHz bandwidth with high sample-rate performance, ensuring detailed waveform capture and rigorous signal validation. The scope features improved responsiveness, on-instrument scripting, and compatibility with advanced compliance tools such as SDAIII and LinQ, making it ideal for complex debugging and verification tasks.
Engineered for design engineers, it enables streamlined debugging with multi-lane eye and jitter analysis plus WaveScan search for efficient signal exploration. Its robust performance supports serial-data and disk-drive compliance testing with precision and reliability.
Testwall can supply the used Teledyne LeCroy WavePro 725Zi, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Teledyne LeCroy WavePro 725Zi.
