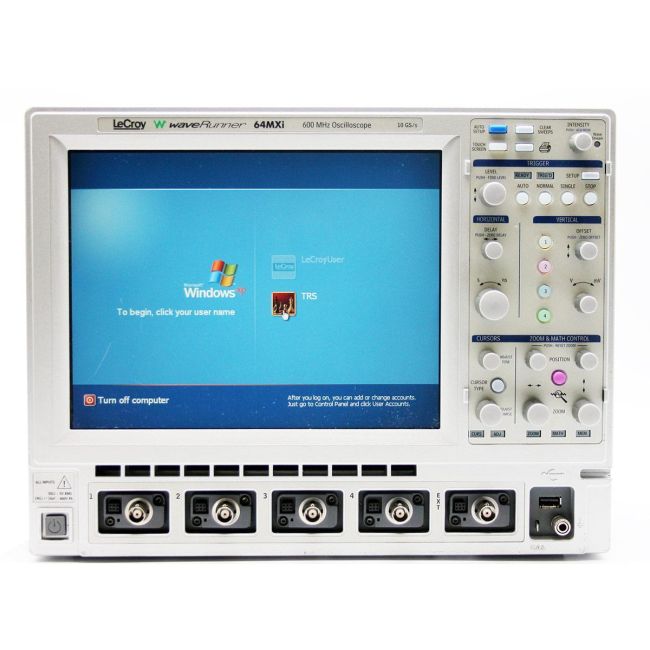

Teledyne LeCroy WR64MXI
| Attribute | Value |
|---|---|
| Bandwidth | 600 MHz |
| Number of Channels | 4 |
| Sample Rate | 5 GS/s |
| Memory Depth | 32 Mpts/ch (64 Mpts interleaved) |
| Vertical Resolution | 8 bits |
| Input Impedance | 1 MΩ / 50 Ω |
| Timebase Range | 200 ps/div to 1000 s/div |
| Display | 12.1-inch color LCD touchscreen |
| Connectivity | USB, Ethernet, GPIB (optional) |
| Form Factor | MXI (Modular Instrument) / Rackmount |
Teledyne LeCroy WR64MXI Options:
- WR64MXI - WR6-VL - 24 Mpts max. when interleaved, 12 Mpts/Ch (for use with 4 Ch WaveRunner 6000A)
- WR64MXI - WR6-VL2 - 24 Mpts max., 2 Ch 12 Mpts/Ch Memory Option
- WR64MXI - WR6-L - 16 Mpts max. when interleaved, 8 Mpts/Ch (for use with 4 Ch WaveRunner 6000A)
- WR64MXI - WR6-L2 - 16 Mpts max., 2 Ch 8 Mpts/Ch Memory Option
- WR64MXI - WR6-DDM2 - Disk Drive Measurement Software Package
- WR64MXI - WR6-DFP2 - Digital Filter Software Package
- WR64MXI - WR6-ENET - Ethernet Test Software Package (WR6200A Only)
- WR64MXI - WR6-JTA2 - Jitter and Timing Analysis Software Package
- WR64MXI - WR6-PMA2 - PowerMeasure Analysis Software Package
- WR64MXI - WR6-EMC - EMC Pulse Parameter Software Package
- WR64MXI - WR6-SDM - Serial Data Mask Software Package
- WR64MXI - WR6-USB2 - USB 2.0 Compliance Test Software Package (WR6200A Only)
- WR64MXI - WR6-XWAV - Intermediate Math Software Package
- WR64MXI - WR6-XMATH - Advanced Math Software Package
- WR64MXI - WR6-XDEV - Advanced Customization Software Package
- WR64MXI - WR6-XVAP - Value Analysis Software Package (Includes XWAV and JTA2)
- WR64MXI - WR6-XMAP - Master Analysis Software Package (Includes JTA2, XMATH and XDEV)
- WR64MXI - WR6-XWEB - Processing Web Editor Software Package for Functions and Parameters
- WR64MXI - MS-32 - 32 Digital Channel Oscilloscope Mixed Signal Option
- WR64MXI - CANbus TDM - CANbus TDM Trigger, Decode and Measure/Graph Testing Option
- WR64MXI - CANbus TD - CANbus TD Trigger and Decode Testing Option
- WR64MXI - WR6-GPIB - IEEE-488 GPIB Interface Upgrade
- WR64MXI - WR6A-GP - Graphics Printer
- WR64MXI - WR6-RHD - Removable Hard Drive
- WR64MXI - WR6-CDRW - CD-RW Upgrade
- WR64MXI - WR6A-RK-GP - Graphic Printer Retrofit
- WR64MXI - WR6-FLPY - USB Floppy Drive
- WR64MXI - WR6-HARD - Hard Transit Case
- WR64MXI - WR6-SOFT - Soft Carrying Case
- WR64MXI - WR6-RACK - Rackmount, 6U High
- WR64MXI - WR6-POUCH - Accessory Pouch
- WR64MXI - WR6-KBD - Mini Keyboard, USB
- WR64MXI - MEM-USB - USB Flash Memory
- WR64MXI - VT75 - Video Trigger Module
| Model | WR64MXI |
|---|
The Teledyne LeCroy WR64MXi Oscilloscope provides 600 MHz analog bandwidth and 4 analog channels with sample rates up to 5 GS/s. It supports advanced serial bus decoding, including I²C, SPI, UART, CAN, LIN, FlexRay, and EMC tests, making it a versatile debugging tool. Mixed-signal capability expands up to 36 digital channels through MS options, ensuring comprehensive analysis for complex designs.
This oscilloscope is ideal for embedded system validation, automotive testing, and mixed-signal applications where high accuracy and real-time analysis are essential. Its customizable display and decoding features streamline workflows for engineers and researchers.
Testwall can supply the used Teledyne LeCroy WR64MXi Oscilloscope, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Teledyne LeCroy WR64MXi Oscilloscope.
