Teseq (Schaffner) NSG 3025
| Attribute | Value |
|---|---|
| Frequency Range | 9 kHz – 30 MHz |
| Output Voltage | Up to 10 V open circuit |
| Impedance | 50 Ω |
| Modulation Types | AM, FM, Pulse, and user-defined waveforms |
| Applicable Standards | IEC 61000-4-6, ISO 11452-2 |
| Test Capability | Conducted immunity testing for electronic equipment |
| Interface | USB, GPIB, and RS-232 |
| Display | Color LCD touchscreen |
| Power Supply | 100–240 V AC, 50/60 Hz |
| Operating Temperature | 0 °C to 40 °C |
Teseq (Schaffner) NSG 3025 Options:
- NSG 3025 - WIN 3025 - Windows software package with additional functions for the automation, interleaved ramping, sequencing, test management, protocol set-up, export of data and communication with other EMC test programs
- NSG 3025 - CAS 3025 - Calibration set for Burst/EFT
- NSG 3025 - CDN 128 - IEC Coupling clamp light
- NSG 3025 - CDN 8014 - Coupling clamp according to IEC 61000-4-4
- NSG 3025 - CDN 8015 - Coupling clamp according to IEC 61000-4-4 with interlock
- NSG 3025 - CDN 163 - Burst Coupling Network 100A per channel
- NSG 3025 - INA 163 - Safety banana plug set to CDN 163 (10 connectors)
- NSG 3025 - INA 3025 - ProfLine interlock option
- NSG 3025 - INA 3026 - Interface adapter for CDN 133/153
- NSG 3025 - INA 3027 - INA-CDN Calibration adaptor set
- NSG 3025 - USO 4013 - USB to serial/optical converter
- NSG 3025 - USO 4013-RS232-20 - USB to serial/optical converter, 20 m POF, RS232 converter
| Model | NSG 3025 |
|---|

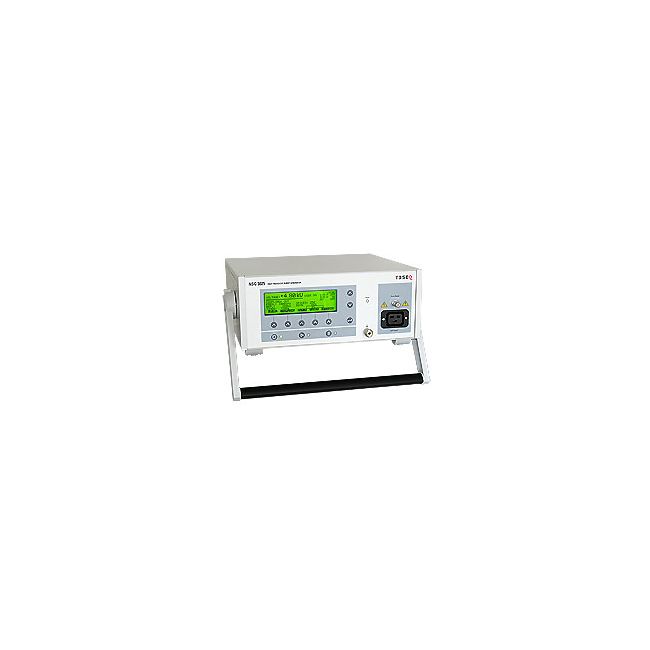

The Teseq Schaffner NSG 3025 is a compact burst generator built for portability and compliance with IEC/EN 61000-4-4 standards. It integrates a built-in coupling network for AC and DC applications, features preprogrammed tests and test sequences, and provides printer output for streamlined test protocols.
Its portable design makes it ideal for laboratory and field testing environments, ensuring precise evaluation of immunity to electrical fast transients (EFT) in devices under test.
Testwall can supply the used Teseq Schaffner NSG 3025, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Teseq Schaffner NSG 3025.
