Teseq (Schaffner) NSG 437
| Attribute | Value |
|---|---|
| Output Voltage Range | Up to 4 kV (open circuit) |
| Output Current Range | Up to 2 kA (short circuit) |
| Pulse Waveform | 5/50 ns (ISO 7637-2 Pulse 1, 2a, 2b, 3a, 3b compatible) |
| Pulse Repetition Rate | Adjustable, up to 10 kHz |
| Applicable Standards | ISO 7637-2, ISO 7637-3 |
| Supply Voltage | 90–264 VAC, 47–63 Hz |
| Operating Temperature | 0°C to +40°C |
| Storage Temperature | -25°C to +70°C |
| Interface / Control | RS-232 / USB, compatible with PC control software |
| Dimensions (W x H x D) | Approximately 430 x 133 x 450 mm (2U rack-mountable) |
| Model | NSG 437 |
|---|

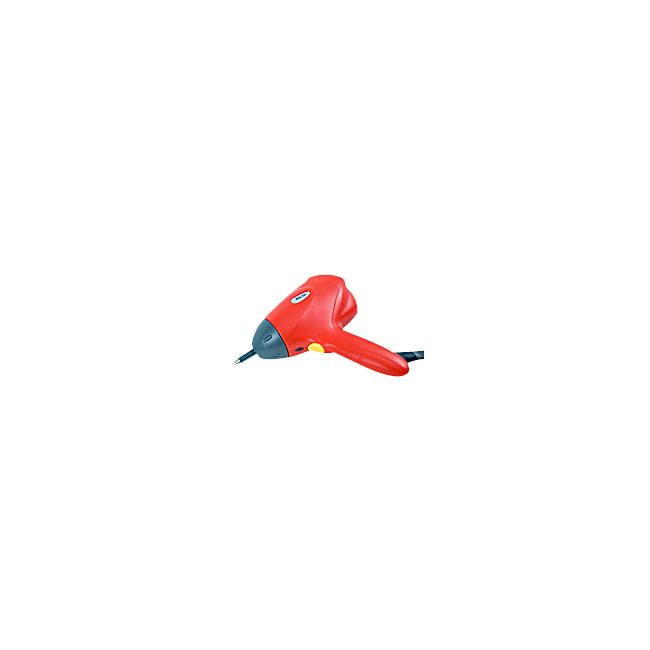

The Teseq Schaffner NSG 437 ESD simulator delivers air- and contact-discharge testing up to 30 kV, meeting IEC/EN 61000-4-2, ISO 10605, and other automotive standards. It features a stabilized HV output, automatic self-calibration, and an ergonomic hand-held design for long test durations. Its touch panel display provides real-time parameter control, polarity selection, and breakdown detection.
Ideal for global compliance testing, the NSG 437 supports over 20 optional discharge networks and multiple tips, making it suitable for diverse test applications across industries. Its preset memory, threshold detection, and user-selectable languages enhance accuracy and usability.
Testwall can supply the used Teseq Schaffner NSG 437, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Teseq Schaffner NSG 437.
