TTI Thurlby

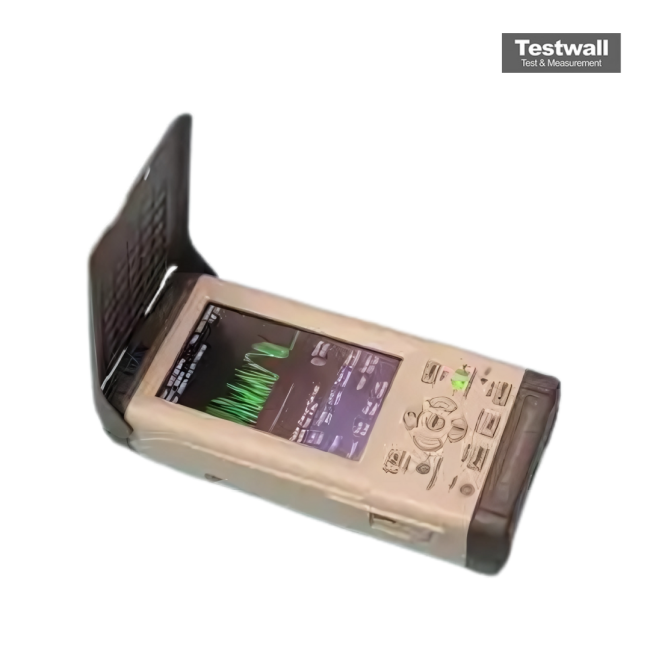

TTI Thurlby Thandar Instruments PSA2701T
2.7GHz - 15KHz 1MHz Spectrum Analyser
1 MHz to 2700 MHz Frequency Range
1 kHz Frequency Resolution
-80 dBm to +20 dBm Amplitude Range
128 x 240 pixel backlit LCD Display
50 Ohms Input Impedance
| Attribute | Value |
|---|---|
| Frequency Range | 1 MHz to 2700 MHz |
| Frequency Resolution | 1 kHz |
| Amplitude Range | -80 dBm to +20 dBm |
| Display | 128 x 240 pixel backlit LCD |
| Input Impedance | 50 Ohms |
| Resolution Bandwidth | 3 MHz typical |
| Power Supply | Internal rechargeable battery or external DC adapter |
| Battery Life | Up to 3 hours typical operation |
| Dimensions | 183 mm x 83 mm x 38 mm |
| Weight | Approximately 400 g |
| Model | Thandar |
|---|
The TTI -Thurlby Thandar Instruments PSA2701T is a 2.70 GHz - 15 KHz , 1.00 MHz Spectrum Analyser
