Viavi (Aeroflex IFR)

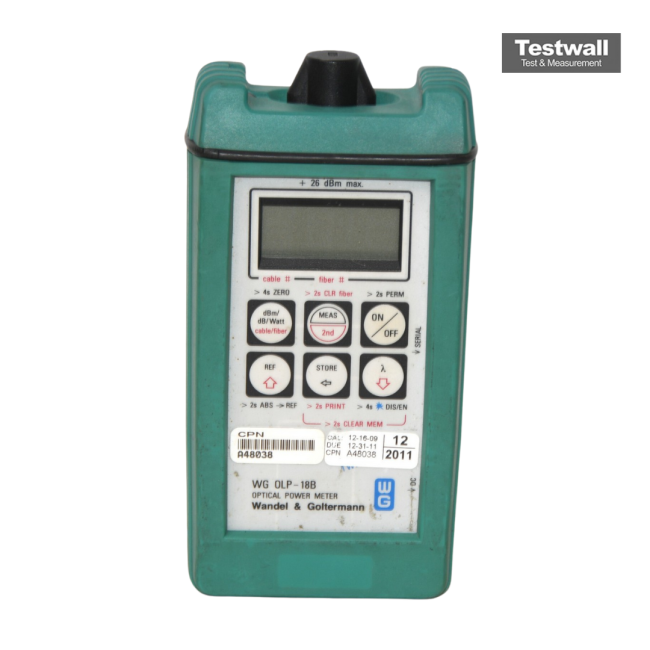

Wandel & Goltermann OLP18B
Optical Power Meter
800 nm to 1700 nm Wavelength Range
-70 dBm to +10 dBm Power Measurement Range
InGaAs Photodiode Detector Type
±0.25 dB Measurement Accuracy
LCD with backlight, displays power in dBm and dB loss Display
| Attribute | Value |
|---|---|
| Wavelength Range | 800 nm to 1700 nm |
| Power Measurement Range | -70 dBm to +10 dBm |
| Detector Type | InGaAs Photodiode |
| Measurement Accuracy | ±0.25 dB |
| Display | LCD with backlight, displays power in dBm and dB loss |
| Connector Interface | Universal adapter compatible with FC, SC, ST connectors |
| Battery Life | Approximately 200 hours with standard alkaline batteries |
| Operating Temperature | 0°C to +50°C (32°F to 122°F) |
| Power Supply | 4 x AA alkaline batteries or external DC adapter |
| Dimensions / Weight | Approximately 175 mm x 80 mm x 35 mm / 350 g |
Wandel & Goltermann OLP18B Options:
- OLP18B - FiberASSISTANT-SW - FiberASSISTANT software package for data handling, report generation, automatic result qualification and automatic data logging (optional accessory)
| Model | OLP18B |
|---|
The Wandel & Goltermann OLP‑18B is a specialized optical power meter designed for high-power optical systems, capable of measuring levels from below −60 dBm to approximately +26 dBm.
Engineered for demanding environments such as CATV networks, EDFAs, and advanced optical components, it ensures reliable, accurate performance and robust durability in every use case.
Testwall can supply the used Wandel & Goltermann OLP‑18B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Wandel & Goltermann OLP‑18B.
