Wayne Kerr 3220
| Attribute | Value |
|---|---|
| Measurement Function | LCR Meter / Component Analyzer |
| Frequency Range | 20 Hz to 200 kHz |
| Basic Accuracy | 0.1% |
| Test Signal Level | 0.1 V to 1.0 V RMS (adjustable) |
| Measurement Parameters | L, C, R, Z, Q, D, θ, G, B, Y |
| Display | Dual parameter LCD display |
| DC Bias Voltage | Internal DC bias up to 2 V |
| Interface / Connectivity | IEEE-488 (GPIB) and RS-232 interfaces |
| Measurement Speed | Fast, Medium, and Slow measurement modes |
| Power Supply | 90 to 264 V AC, 47 to 63 Hz |
| Model | 3220 |
|---|

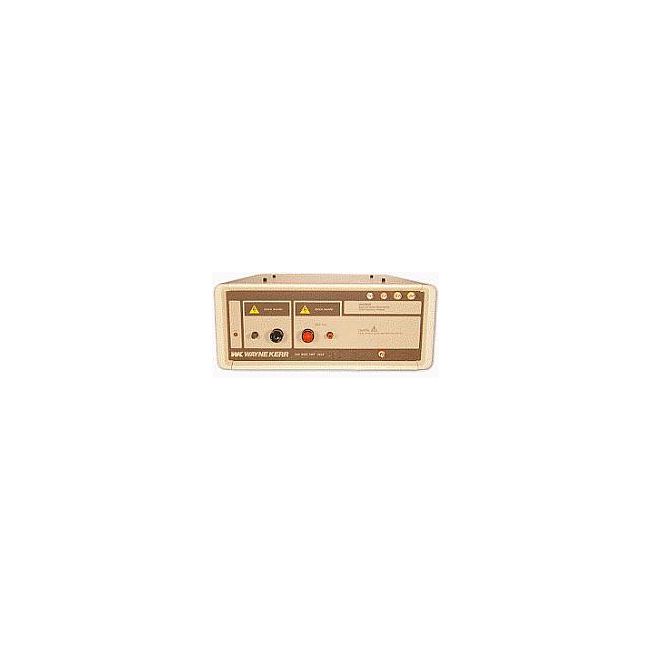

The Wayne Kerr 3220 is a precision impedance analyzer engineered for accurate characterization of passive components such as inductors, capacitors, and resistors. With a wide frequency range, it ensures reliable testing under varying conditions and delivers consistent, repeatable results ideal for R&D and laboratory use.
Its advanced measurement capabilities include detailed parameter analysis, providing engineers with the data required for design verification, component evaluation, and performance validation. The user-friendly interface with a comprehensive display enhances usability and efficiency.
Testwall can supply the used Wayne Kerr 3220, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Wayne Kerr 3220.
