Yokogawa DL7100
| Attribute | Value |
|---|---|
| Bandwidth | 500 MHz |
| Number of Channels | 4 analog channels |
| Sample Rate | 1 GS/s (single channel), 500 MS/s (all channels) |
| Record Length | Up to 4 MW (megawords) per channel |
| Vertical Resolution | 8-bit resolution |
| Time Base Range | 1 ns/div to 50 s/div |
| Input Impedance | 1 MΩ / 50 Ω selectable |
| Display | 8.4-inch TFT color LCD display |
| Storage Interface | Floppy disk, SCSI, and PC card (ATA flash) storage options |
| Interface / Connectivity | GPIB and RS-232 standard interfaces for remote control |
| Model | DL7100 |
|---|

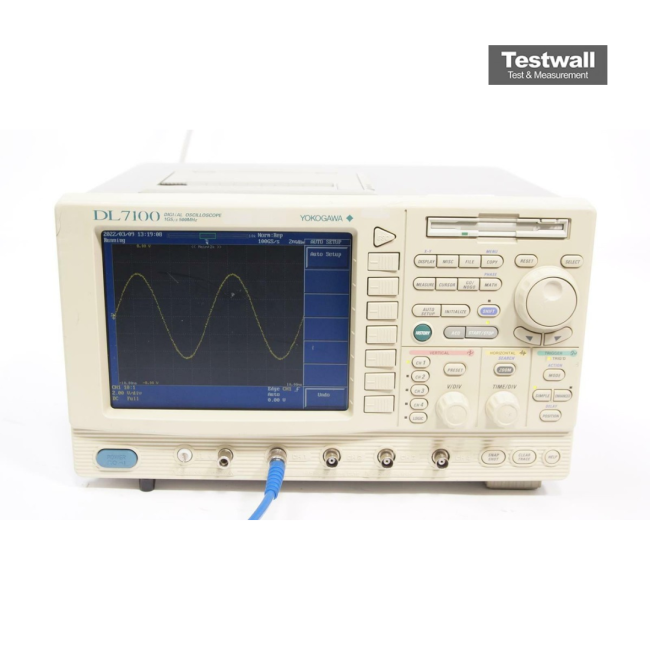

The Yokogawa DL7100 4 Channel 500MHz Digital Scope delivers advanced signal analysis with four input channels and a 500MHz bandwidth, ensuring precise waveform capture and analysis. Featuring high sampling rates, deep memory, and intuitive controls, it offers exceptional performance for demanding electronic testing.
Ideal for high-speed digital and mixed-signal applications, the DL7100 excels in troubleshooting, validation, and design verification with clarity and accuracy.
Testwall can supply the used Yokogawa DL7100 4 Channel 500MHz Digital Scope, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Yokogawa DL7100 4 Channel 500MHz Digital Scope.
