Yokogawa WT1804
| Attribute | Value |
|---|---|
| Number of Input Channels | 4 |
| Maximum Input Voltage | 1000 V RMS |
| Maximum Input Current | 30 A RMS (direct input) |
| Basic Power Accuracy | ±0.05% of reading |
| Frequency Measurement Range | DC, 0.5 Hz to 1 MHz |
| Bandwidth | DC to 1 MHz |
| Sampling Rate | 2 MS/s per channel |
| Display | 8.4-inch TFT color LCD touchscreen |
| Communication Interfaces | USB, Ethernet (GP-IB optional) |
| Power Supply | 100 to 240 V AC, 50/60 Hz |

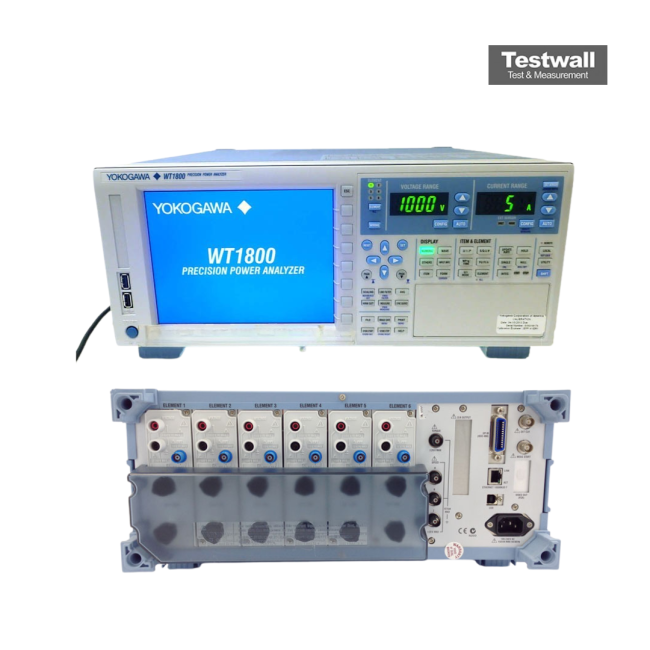

Yokogawa WT1804 High Performance Power Analyzer (4 Chan) Options:
- WT1804 - 06 - 6X 50A Inputs
- WT1804 - 15 - 1X 5A & 5X 50A Inputs
- WT1804 - 24 - 2X 5A & 4X 50A Inputs
- WT1804 - 33 - 3X 5A & 3X 50A Inputs
- WT1804 - 42 - 4X 5A & 2X 50A Inputs
- WT1804 - 51 - 5X 5A & 1X 50A Inputs
- WT1804 - 60 - 6X 5A Inputs
- WT1804 - AUX - Auxiliary Sensor Inputs
- WT1804 - B5 - Built-In Printer
- WT1804 - DA - 20-Channel Da Outputs
- WT1804 - DT - Delta Computation
- WT1804 - EX6 - External Current Sensor Input
- WT1804 - FQ - Add-On Frequency Measurement
- WT1804 - G5 - Harmonic Measurement
- WT1804 - G6 - Simultaneous Dual Harmonic Measurement
- WT1804 - HS - High Speed Data Capturing
- WT1804 - MTR - Motor Evaluation Function
- WT1804 - V1 - Rgb Output
| Model | WT1804 |
|---|
The Yokogawa WT1804 High Performance Power Analyzer (4 Chan) offers advanced multi-channel power measurement with exceptional accuracy and resolution. With four input channels, it supports simultaneous measurement of voltage, current, power, and harmonics across a broad frequency range. Its high-speed data acquisition and advanced computation functions make it ideal for precision testing in research and industrial applications.
Engineered for detailed analysis, it provides configurable sampling rates, harmonic analysis up to the 500th order, and versatile connectivity options. Perfect for power electronics, motor drives, and renewable energy system evaluation.
Testwall can supply the used Yokogawa WT1804 High Performance Power Analyzer (4 Chan), fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Yokogawa WT1804 High Performance Power Analyzer (4 Chan).
