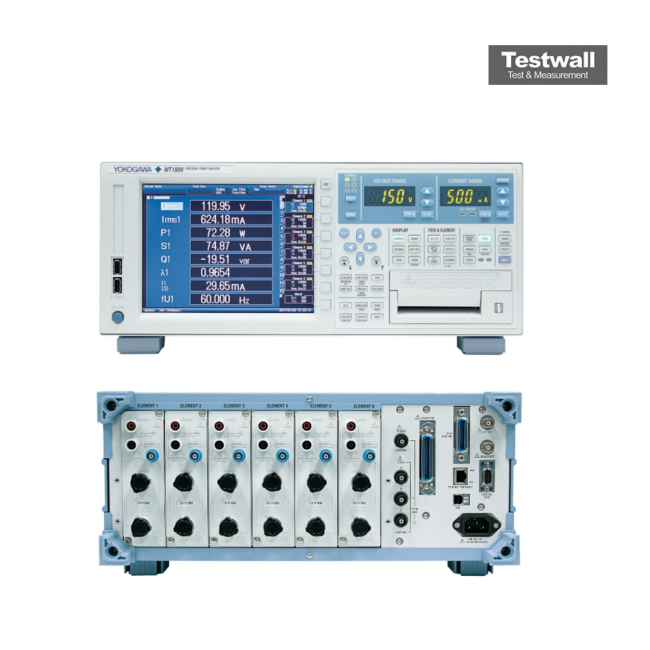

Yokogawa WT1806
| Attribute | Value |
|---|---|
| Number of Input Channels | 6 |
| Maximum Voltage Input | 1000 V RMS |
| Maximum Current Input | 30 A RMS (direct input) |
| Basic Power Accuracy | ±0.1% |
| Frequency Range | DC, 0.1 Hz to 1 MHz |
| Measurement Parameters | Voltage, Current, Active Power, Reactive Power, Apparent Power, Power Factor, Phase Angle, Frequency, Harmonics |
| Display | 8.4-inch TFT Color LCD Touchscreen |
| Data Storage | Internal memory and USB storage support |
| Communication Interfaces | USB, GP-IB (IEEE 488), Ethernet (LAN), RS-232 |
| Harmonic Analysis | Up to 500th order harmonic measurement |
Yokogawa WT1806 High Performance Power Analyzer (6 Chan) Options:
- WT1806 - 06 - 6X 50A Inputs
- WT1806 - 15 - 1X 5A & 5X 50A Inputs
- WT1806 - 24 - 2X 5A & 4X 50A Inputs
- WT1806 - 33 - 3X 5A & 3X 50A Inputs
- WT1806 - 42 - 4X 5A & 2X 50A Inputs
- WT1806 - 51 - 5X 5A & 1X 50A Inputs
- WT1806 - 60 - 6X 5A Inputs
- WT1806 - AUX - Auxiliary Sensor Inputs
- WT1806 - B5 - Built-In Printer
- WT1806 - DA - 20-Channel Da Outputs
- WT1806 - DT - Delta Computation
- WT1806 - EX6 - External Current Sensor Input
- WT1806 - FQ - Add-On Frequency Measurement
- WT1806 - G5 - Harmonic Measurement
- WT1806 - G6 - Simultaneous Dual Harmonic Measurement
- WT1806 - HS - High Speed Data Capturing
- WT1806 - MTR - Motor Evaluation Function
- WT1806 - V1 - Rgb Output
| Model | WT1806 |
|---|
The Yokogawa WT1806 High Performance Power Analyzer (6 Channel) offers six input elements with exceptional basic power accuracy of 0.1% and DC power accuracy of 0.05%. Featuring a 5 MHz voltage and current bandwidth, it supports precise current measurements from as low as 100 µA to 55 A, ensuring high fidelity for advanced testing needs.
Ideal for multi-channel measurement applications, the WT1806 excels in analyzing complex power systems with superior accuracy and speed, making it suitable for research, industrial, and engineering environments.
Testwall can supply the used Yokogawa WT1806 High Performance Power Analyzer (6 Channel), fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Yokogawa WT1806 High Performance Power Analyzer (6 Channel).
