Yokogawa

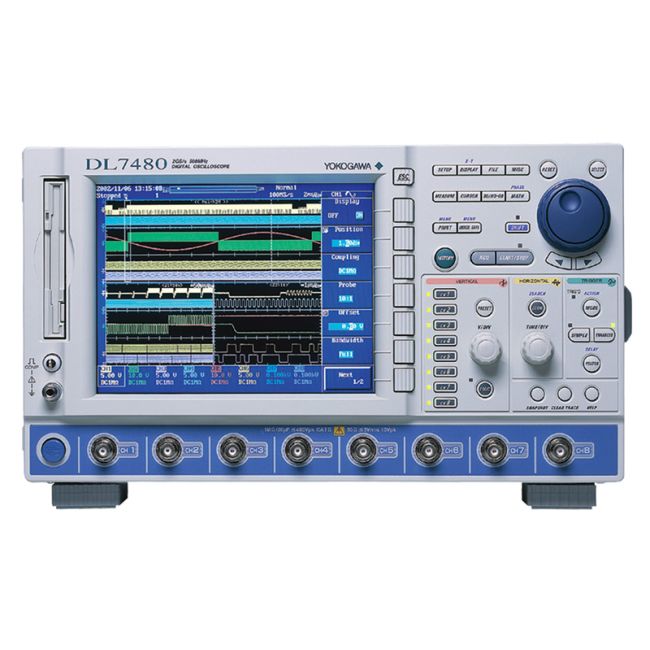

Yokogowa DL7480
500MHz Digital Oscilloscope
4 analog channels + 16 logic channels Number of Channels
500 MHz Bandwidth
2 GS/s (single channel), 1 GS/s (all channels) Sample Rate
Up to 32 MW per channel Record Length
8-bit (12-bit in high resolution mode) Vertical Resolution
| Attribute | Value |
|---|---|
| Number of Channels | 4 analog channels + 16 logic channels |
| Bandwidth | 500 MHz |
| Sample Rate | 2 GS/s (single channel), 1 GS/s (all channels) |
| Record Length | Up to 32 MW per channel |
| Vertical Resolution | 8-bit (12-bit in high resolution mode) |
| Input Impedance | 1 MΩ / 50 Ω (selectable) |
| Display | 10.4-inch TFT color LCD |
| Timebase Range | 1 ns/div to 50 s/div |
| Storage Interface | Floppy disk, SCSI, Ethernet, GPIB |
| Trigger Types | Edge, pulse width, pattern, state, delay, serial bus (optional) |
Yokogowa DL7480 Options:
- DL7480 - /D - UL and CSA standard
- DL7480 - /F - VDE standard
- DL7480 - /Q - BS standard
- DL7480 - /R - AS standard
- DL7480 - /H - GB standard
- DL7480 - /J1 - Floppy disk drive
- DL7480 - /J2 - Zip drive
- DL7480 - /B5 - Built-in printer
- DL7480 - /E4 - Four additional passive probes (701470, 701480 only)
- DL7480 - /EX4 - Attach four 701941 probes
- DL7480 - /EA4 - Four additional 701941 probes
- DL7480 - /P4 - Four additional probe power connectors (701470, 701480 only)
- DL7480 - /N4 - Logic input for 701460/701480
- DL7480 - /C7 - SCSI interface
- DL7480 - /C10 - Ethernet interface
- DL7480 - /G2 - User-defined math function
- DL7480 - /G4 - Power Supply Analysis Function
- DL7480 - /F5 - I2C + SPI Bus Analyzer
- DL7480 - /F7 - CAN + SPI Bus Analyzer
- DL7480 - /F8 - I2C + CAN + SPI Bus Analyzer
| Model | DL7480 |
|---|
The Yokogawa DL7480 is a 500.0 MHz - 2.0 GSa/sec , Digital Oscilloscope
