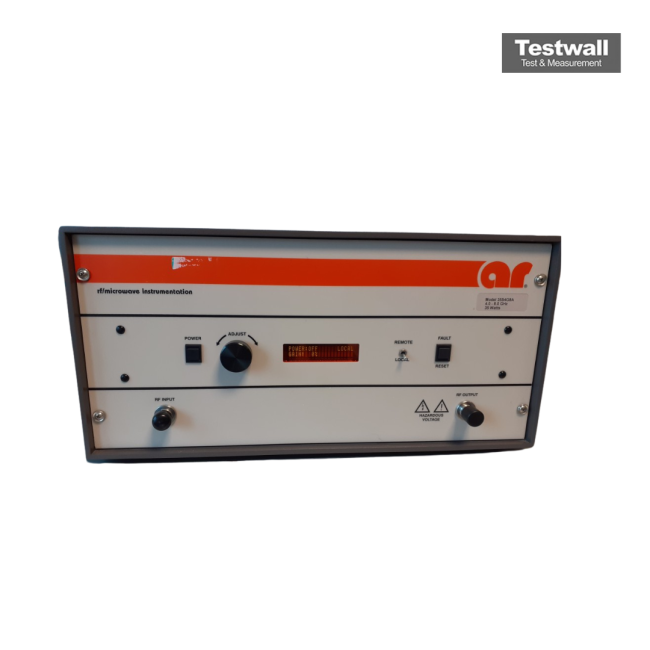

Amplifier Research 200W1000M7A
| Attribute | Value |
|---|---|
| Frequency Range | 0.8 MHz – 1000 MHz |
| Output Power | 200 Watts minimum (CW) |
| Gain | 55 dB minimum |
| Gain Flatness | ±3 dB maximum |
| Input Power for Rated Output | 0 dBm typical |
| Input VSWR | 2.0:1 maximum |
| Output VSWR | 2.0:1 maximum (into matched load) |
| Harmonic Distortion | -10 dBc maximum at rated output |
| Power Requirements | 220 VAC, Single Phase, 50/60 Hz |
| Cooling Method | Forced air cooling |
| Model | 200W1000M7A |
|---|
The Amplifier Research 200W1000M7A delivers 200 W CW output power with coverage up to 1 GHz, featuring “M7A” technology that integrates advanced real-time monitoring and automatic leveling control. Its excellent gain flatness, modulation support, and robust signal fidelity make it ideal for static and dynamic RF applications.
Engineered for demanding EMC testing, automated laboratories, and communication system development, the 200W1000M7A provides precise performance for environments requiring accurate modulation and feedback control.
Testwall can supply the used Amplifier Research 200W1000M7A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Amplifier Research 200W1000M7A.
