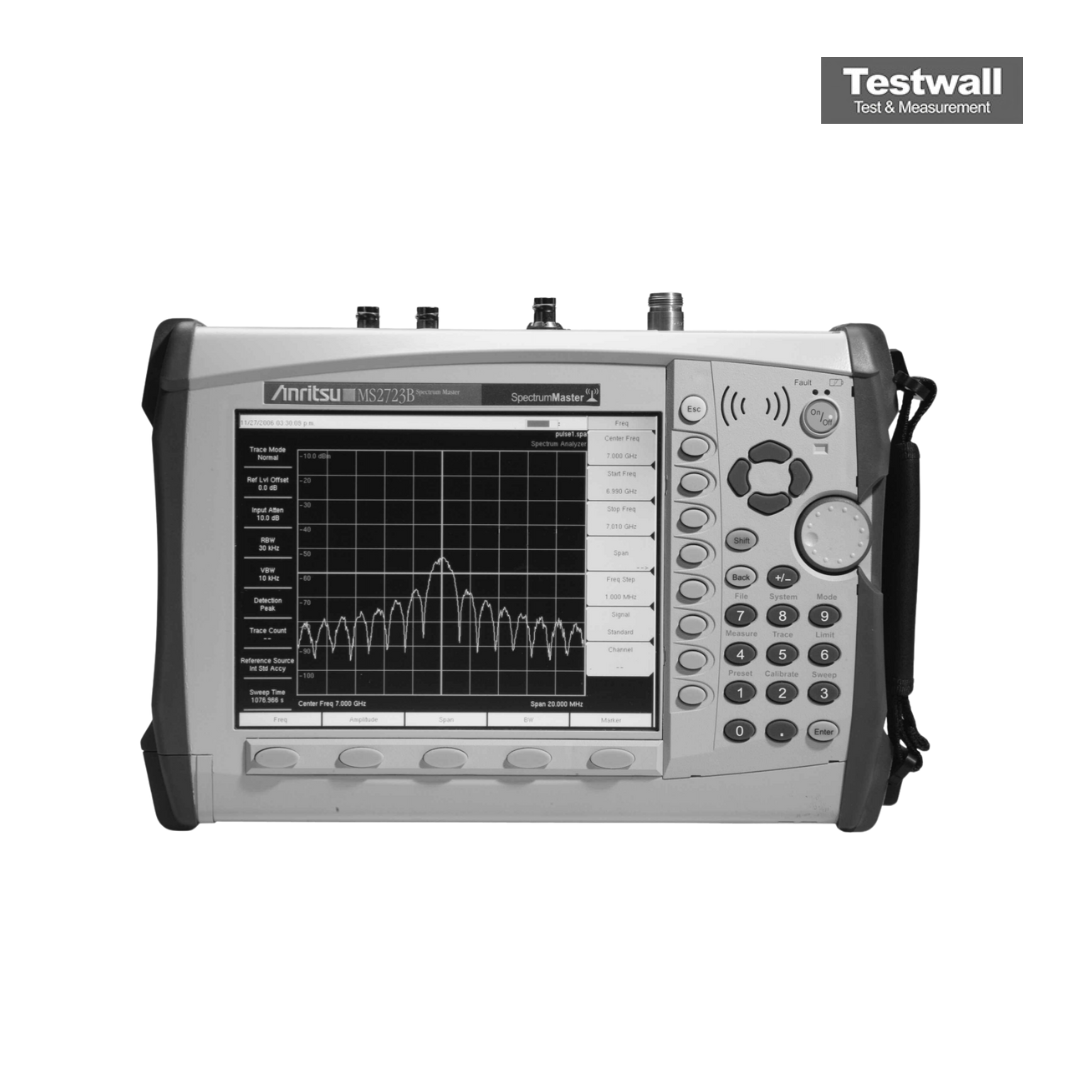

Anritsu MS2723B
| Attribute | Value |
|---|---|
| Frequency Range | 100 kHz to 13 GHz |
| Displayed Average Noise Level (DANL) | -163 dBm (typ.) at 1 GHz with preamplifier enabled |
| Phase Noise | -100 dBc/Hz at 10 kHz offset (typ.) at 1 GHz carrier |
| Dynamic Range | Up to 104 dB |
| Resolution Bandwidth (RBW) | 1 Hz to 10 MHz |
| Amplitude Accuracy | ±0.5 dB (typ.) |
| Battery Life | Approximately 2 hours with standard battery pack |
| Display | 10.4-inch color TFT LCD, 800 x 600 resolution |
| Weight | Approximately 3.6 kg (7.9 lbs) with battery |
| Operating Temperature Range | -10°C to +55°C (14°F to 131°F) |
| Model | MS2723B |
|---|
The Anritsu MS2723B handheld spectrum analyzer offers exceptional precision for analyzing modern wireless LAN, 3 G, ultra-wideband, and medical monitoring signals, featuring a class-leading dynamic range of 101 dB and coverage up to 13 GHz in a lightweight, sub-8-pound form.
With optional spectrogram, signal strength, RSSI, and customizable channel scanning for interference mitigation, plus quasi-peak detection and CISPR resolution bandwidths, it excels in complex RF environments.
Testwall can supply the used Anritsu MS2723B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MS2723B.
