Additel

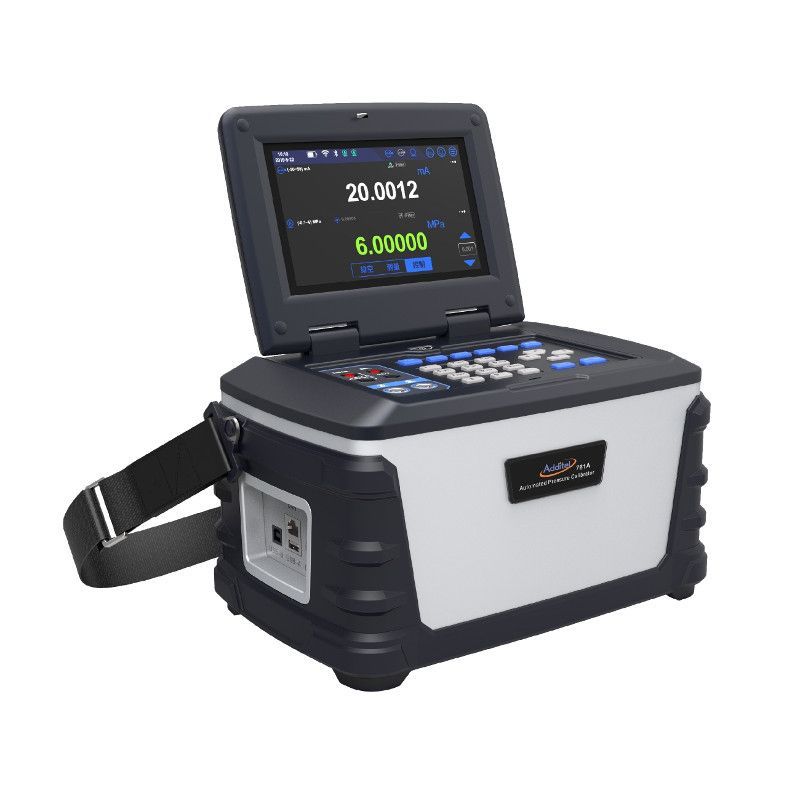

Additel ADT761A-1K
Automated Pressure Calibrator
0 a 1000 psi (0 a 70 bar) Rango de presión
±0,05% del fondo de escala Exactitud
Manométrica Tipo de presión
Gases y líquidos no corrosivos Medio compatible
1/4 NPT macho Conexión de proceso
| Atributo | Valor |
|---|---|
| Rango de presión | 0 a 1000 psi (0 a 70 bar) |
| Exactitud | ±0,05% del fondo de escala |
| Tipo de presión | Manométrica |
| Medio compatible | Gases y líquidos no corrosivos |
| Conexión de proceso | 1/4 NPT macho |
| Temperatura de operación | -10 °C a 50 °C |
| Fuente de alimentación | Batería de litio recargable |
| Pantalla | Pantalla LCD de alta resolución |
| Unidades de medida | Múltiples unidades seleccionables (psi, bar, kPa, MPa, entre otras) |
| Certificaciones | ATEX / IECEx (zona de uso en ambientes potencialmente explosivos) |
Additel ADT761A-1K Options:
- ADT761A-1K - 02-CP30-N - Accuracy 0.02%FS, Low-Range Module CP30 (-13.5 to 30 psig), External Pressure Manifold 1/4NPT female
- ADT761A-1K - 02-CP30-N2 - Accuracy 0.02%FS, Low-Range Module CP30 (-13.5 to 30 psig), External Pressure Manifold 1/2NPT female
- ADT761A-1K - 02-CP30-B - Accuracy 0.02%FS, Low-Range Module CP30 (-13.5 to 30 psig), External Pressure Manifold 1/4BSP female
- ADT761A-1K - 02-CP30-B2 - Accuracy 0.02%FS, Low-Range Module CP30 (-13.5 to 30 psig), External Pressure Manifold 1/2BSP female
- ADT761A-1K - 02-CP30-M - Accuracy 0.02%FS, Low-Range Module CP30 (-13.5 to 30 psig), External Pressure Manifold M20X1.5 female
- ADT761A-1K - 02-CP35-N - Accuracy 0.02%FS, Low-Range Module CP35 (-13.5 to 35 psig), External Pressure Manifold 1/4NPT female
- ADT761A-1K - 02-CP35-N2 - Accuracy 0.02%FS, Low-Range Module CP35 (-13.5 to 35 psig), External Pressure Manifold 1/2NPT female
- ADT761A-1K - 02-CP35-B - Accuracy 0.02%FS, Low-Range Module CP35 (-13.5 to 35 psig), External Pressure Manifold 1/4BSP female
- ADT761A-1K - 02-CP35-B2 - Accuracy 0.02%FS, Low-Range Module CP35 (-13.5 to 35 psig), External Pressure Manifold 1/2BSP female
- ADT761A-1K - 02-CP35-M - Accuracy 0.02%FS, Low-Range Module CP35 (-13.5 to 35 psig), External Pressure Manifold M20X1.5 female
- ADT761A-1K - 02-CP50-N - Accuracy 0.02%FS, Low-Range Module CP50 (-13.5 to 50 psig), External Pressure Manifold 1/4NPT female
- ADT761A-1K - 02-CP50-N2 - Accuracy 0.02%FS, Low-Range Module CP50 (-13.5 to 50 psig), External Pressure Manifold 1/2NPT female
- ADT761A-1K - 02-CP50-B - Accuracy 0.02%FS, Low-Range Module CP50 (-13.5 to 50 psig), External Pressure Manifold 1/4BSP female
- ADT761A-1K - 02-CP50-B2 - Accuracy 0.02%FS, Low-Range Module CP50 (-13.5 to 50 psig), External Pressure Manifold 1/2BSP female
- ADT761A-1K - 02-CP50-M - Accuracy 0.02%FS, Low-Range Module CP50 (-13.5 to 50 psig), External Pressure Manifold M20X1.5 female
- ADT761A-1K - 02-CP100-N - Accuracy 0.02%FS, Low-Range Module CP100 (-13.5 to 100 psig), External Pressure Manifold 1/4NPT female
- ADT761A-1K - 02-CP100-N2 - Accuracy 0.02%FS, Low-Range Module CP100 (-13.5 to 100 psig), External Pressure Manifold 1/2NPT female
- ADT761A-1K - 02-CP100-B - Accuracy 0.02%FS, Low-Range Module CP100 (-13.5 to 100 psig), External Pressure Manifold 1/4BSP female
- ADT761A-1K - 02-CP100-B2 - Accuracy 0.02%FS, Low-Range Module CP100 (-13.5 to 100 psig), External Pressure Manifold 1/2BSP female
- ADT761A-1K - 02-CP100-M - Accuracy 0.02%FS, Low-Range Module CP100 (-13.5 to 100 psig), External Pressure Manifold M20X1.5 female
- ADT761A-1K - 02-CP150-N - Accuracy 0.02%FS, Low-Range Module CP150 (-13.5 to 150 psig), External Pressure Manifold 1/4NPT female
- ADT761A-1K - 02-CP150-N2 - Accuracy 0.02%FS, Low-Range Module CP150 (-13.5 to 150 psig), External Pressure Manifold 1/2NPT female
- ADT761A-1K - 02-CP150-B - Accuracy 0.02%FS, Low-Range Module CP150 (-13.5 to 150 psig), External Pressure Manifold 1/4BSP female
- ADT761A-1K - 02-CP150-B2 - Accuracy 0.02%FS, Low-Range Module CP150 (-13.5 to 150 psig), External Pressure Manifold 1/2BSP female
- ADT761A-1K - 02-CP150-M - Accuracy 0.02%FS, Low-Range Module CP150 (-13.5 to 150 psig), External Pressure Manifold M20X1.5 female
- ADT761A-1K - 02-CP200-N - Accuracy 0.02%FS, Low-Range Module CP200 (-13.5 to 200 psig), External Pressure Manifold 1/4NPT female
- ADT761A-1K - 02-CP200-N2 - Accuracy 0.02%FS, Low-Range Module CP200 (-13.5 to 200 psig), External Pressure Manifold 1/2NPT female
- ADT761A-1K - 02-CP200-B - Accuracy 0.02%FS, Low-Range Module CP200 (-13.5 to 200 psig), External Pressure Manifold 1/4BSP female
- ADT761A-1K - 02-CP200-B2 - Accuracy 0.02%FS, Low-Range Module CP200 (-13.5 to 200 psig), External Pressure Manifold 1/2BSP female
- ADT761A-1K - 02-CP200-M - Accuracy 0.02%FS, Low-Range Module CP200 (-13.5 to 200 psig), External Pressure Manifold M20X1.5 female
- ADT761A-1K - 02-CP300-N - Accuracy 0.02%FS, Low-Range Module CP300 (-13.5 to 300 psig), External Pressure Manifold 1/4NPT female
- ADT761A-1K - 02-CP300-N2 - Accuracy 0.02%FS, Low-Range Module CP300 (-13.5 to 300 psig), External Pressure Manifold 1/2NPT female
- ADT761A-1K - 02-CP300-B - Accuracy 0.02%FS, Low-Range Module CP300 (-13.5 to 300 psig), External Pressure Manifold 1/4BSP female
- ADT761A-1K - 02-CP300-B2 - Accuracy 0.02%FS, Low-Range Module CP300 (-13.5 to 300 psig), External Pressure Manifold 1/2BSP female
- ADT761A-1K - 02-CP300-M - Accuracy 0.02%FS, Low-Range Module CP300 (-13.5 to 300 psig), External Pressure Manifold M20X1.5 female
- ADT761A-1K - 02-CP500-N - Accuracy 0.02%FS, Low-Range Module CP500 (-13.5 to 500 psig), External Pressure Manifold 1/4NPT female
- ADT761A-1K - 02-CP500-N2 - Accuracy 0.02%FS, Low-Range Module CP500 (-13.5 to 500 psig), External Pressure Manifold 1/2NPT female
- ADT761A-1K - 02-CP500-B - Accuracy 0.02%FS, Low-Range Module CP500 (-13.5 to 500 psig), External Pressure Manifold 1/4BSP female
- ADT761A-1K - 02-CP500-B2 - Accuracy 0.02%FS, Low-Range Module CP500 (-13.5 to 500 psig), External Pressure Manifold 1/2BSP female
- ADT761A-1K - 02-CP500-M - Accuracy 0.02%FS, Low-Range Module CP500 (-13.5 to 500 psig), External Pressure Manifold M20X1.5 female
- ADT761A-1K - 02-CP600-N - Accuracy 0.02%FS, Low-Range Module CP600 (-13.5 to 600 psig), External Pressure Manifold 1/4NPT female
- ADT761A-1K - 02-CP600-N2 - Accuracy 0.02%FS, Low-Range Module CP600 (-13.5 to 600 psig), External Pressure Manifold 1/2NPT female
- ADT761A-1K - 02-CP600-B - Accuracy 0.02%FS, Low-Range Module CP600 (-13.5 to 600 psig), External Pressure Manifold 1/4BSP female
- ADT761A-1K - 02-CP600-B2 - Accuracy 0.02%FS, Low-Range Module CP600 (-13.5 to 600 psig), External Pressure Manifold 1/2BSP female
- ADT761A-1K - 02-CP600-M - Accuracy 0.02%FS, Low-Range Module CP600 (-13.5 to 600 psig), External Pressure Manifold M20X1.5 female
| Model | ADT761A-1K |
|---|
ADDITEL ADT761A-1K Automated Pressure Calibrator
The Additel ADT761A-1K Automated Pressure Calibrator containing a high-performance electronic pump and precision pressure controller, is a perfect solution for calibrating gauges, transmitters, and switches in the field or in the laboratory. To improve the calibrator accuracy, two pressure modules with differing ranges are built-in and integrated with the internal pump and controller. The Additel ADT761A-1K provides specific calibration needs, offering exceptional accuracy and control stability, making them versatile tools for professionals across various industries.
The Additel ADT761A-1K will generate and control from vacuum pressures up to 1,000 psig (70 bar.g). This unit can typically achieve 1,000 psi in less than 45 seconds. Like the ADT761A-500, both gauge and absolute pressures can be realized due to a built-in barometer. Each unit comes with a CP1K module (-13 to 1,000 psig) for the high range and the low range can be preconfigured based on the variety of modules available down to 30 psig (2 bar.g). Additel ADT761A-1K also features HART communication capability, supplies 24V loop power, and reads the cur or voltage produced by the pressure transducers.
Specifications for the ADDITEL ADT761A-1K Automated Pressure Calibrator Include:
| Pressure Range | 1,000 psig (70 bar.g) |
| Accuracy | 0.02 %FS |
| Resolution | 6 digits |
| Stability | 0.003 %FS |
