EA Elektro-Automatik BT22000-40
| Atributo | Valor |
|---|---|
| Tensión de prueba máxima | 22000 V (22 kV) |
| Corriente de prueba máxima | 40 mA |
| Potencia máxima | 880 W |
| Tipo de salida | CC (Corriente Continua) |
| Regulación de tensión | 0 V hasta 22000 V ajustable |
| Regulación de corriente | 0 mA hasta 40 mA ajustable |
| Interfaz de comunicación | USB, RS-232, Analógica |
| Tensión de alimentación | 230 V CA, 50/60 Hz |
| Pantalla | Pantalla digital con visualización de tensión y corriente |
| Aplicación principal | Pruebas de rigidez dieléctrica y ensayos de alta tensión |
EA Elektro-Automatik BT22000-40 Options:
- BT22000-40 - 02113020 - Standard (BT 22000-40, 0-2000V, ±40A, ±30000W)
- BT22000-40 - 02123010 - Standard + Water Cooling in stainless steel (BT 22000-40, 0-2000V, ±40A, ±30000W)
| Model | BT22000-40 |
|---|

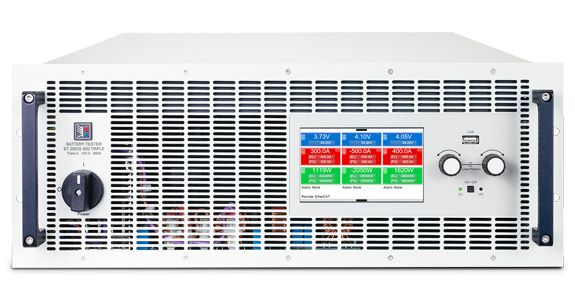

ELEKTRO-AUTOMATIK BT22000-40 Battery Tester
The Elektro-Automatik BT22000-40 are two quadrant devices which can perform the function of a charger as well as that of an electronic load (discharging). In discharging mode the device is regenerative and feeds the energy back into the local grid with an efficiency of up to over 96%. The output per channel of the battery tester with regenerative energy recovery BT22000-40 Triple with a DC voltage of up to 2000 V allows positive and negative currents of up to 40 A as a two quadrant device. The flexible output stages (autoranging) provide the user with a wide voltage, cur and power range and hence a wider field of working than traditional battery tester.
A typical application for the Elektro-Automatik BT22000-40 battery tester with regenerative energy recovery from Elektro-Automatik is the testing of the electrical characteristics of a battery. The wide application spectrum covers cell, module or pack tests, the determination of the SOH (State-of-Health) for a second life classification as well as the End-of-Line (EOL) test. These applications put many demands on power electronics which are fulfilled by the BT22000-40 range. The excellent features of this device range are: measurement of voltage and cur with the required accuracy and performance, reproducibility and reliability of these data and the flexible usability. Additional applications include the simulation of batteries as single cells, modules, or packs. These simulations aid in the optimal configuration of energy storage as well as the supplied components under test.
Specifications for the ELEKTRO-AUTOMATIK BT22000-40 Battery Tester Include:
| Voltage Range | 0 - 2000 V |
| Cur Range | ± 40 A |
| Max Power Range | ± 30kW |
| Efficiency Sink/Source (up to) | 96.5 % |
