Hameg

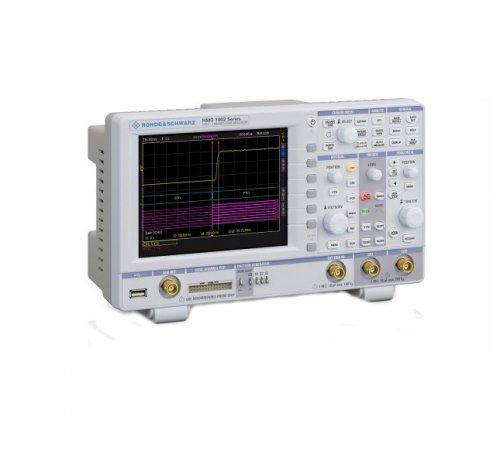

Hameg HMO1002 Mixed Signal Oscilloscope
50 MHz Ancho de banda
2 Número de canales analógicos
8 Canales digitales
1 GSa/s Frecuencia de muestreo máxima
1 MPunto Profundidad de memoria
| Atributo | Valor |
|---|---|
| Ancho de banda | 50 MHz |
| Número de canales analógicos | 2 |
| Canales digitales | 8 |
| Frecuencia de muestreo máxima | 1 GSa/s |
| Profundidad de memoria | 1 MPunto |
| Tamaño de pantalla | 6 pulgadas (TFT color) |
| Resolución vertical | 8 bits |
| Sensibilidad vertical | 1 mV/div - 10 V/div |
| Base de tiempos | 5 ns/div - 50 s/div |
| Interfaz de comunicación | USB (dispositivo y host), Ethernet |
Hameg HMO1002 Mixed Signal Oscilloscope Options:
- HMO1002 - HOO572 - Bandwidth upgrade 50MHz to 70MHz
- HMO1002 - HOO512 - Bandwidth upgrade 50MHz to 100MHz
- HMO1002 - HOO712 - Bandwidth upgrade 70MHz to 100MHz
- HMO1002 - HOO10 - I²C, SPI, UART/RS-232 on analog and logic channels
- HMO1002 - HOO11 - I²C, SPI, UART/RS-232 on all analog channels
- HMO1002 - HOO12 - CAN and LIN on analog and logic channels
| Model | HMO1002 |
|---|
The HMO1002 50 MHZ 2 channel mixed signal oscilloscope from the Rohde & Schwarz Value Instruments product range features a high waveform update rate and high vertical sensitivity. The fanless instrument offers a sampling rate of 1 Gsample/s and a memory depth of 1 Msample.
The HMO1002 offers time domain, logic, protocol and frequency analysis in a single instrument and also contains a wide range of upgrade options.
70, 100 and 150 MHz models also available. Please request quote for further information.
Key Features
- 1 Gsample/s realtime sampling rate
- 1 Msample memory depth
- High vertical sensitivity down to 1 mV/div
- Low-noise measurement due to state-of-the-art A/D converter
- QuickView and QuickMath for fastest access to the most demanding functions
- Serial bus trigger and hardware accelerated decode:
- I2C, SPI, UART/RS-232, CAN, LIN
- Dedicated education mode
- Built in MSO capability and five more bench functionalities at the best in class price performance: pattern generator, digital voltmeter, production tester, function generator and component tester
