Fluke 5540A
| Attribute | Value |
|---|---|
| Frequency Range | 0 Hz to 30 MHz |
| AC Voltage Range | 1 mV to 1100 V |
| DC Voltage Range | 0 V to ±1100 V |
| AC Current Range | 1 mA to 20 A |
| DC Current Range | 1 mA to 20 A |
| Resistance Range | 0 Ω to 100 MΩ |
| AC Voltage Accuracy | 0.012% of reading (best) |
| Operating Temperature | 18 °C to 28 °C (for rated accuracy) |
| Output Impedance | 50 Ω (coaxial output) |
| Interface | IEEE-488 (GPIB), RS-232 |
| Model | 5540A |
|---|

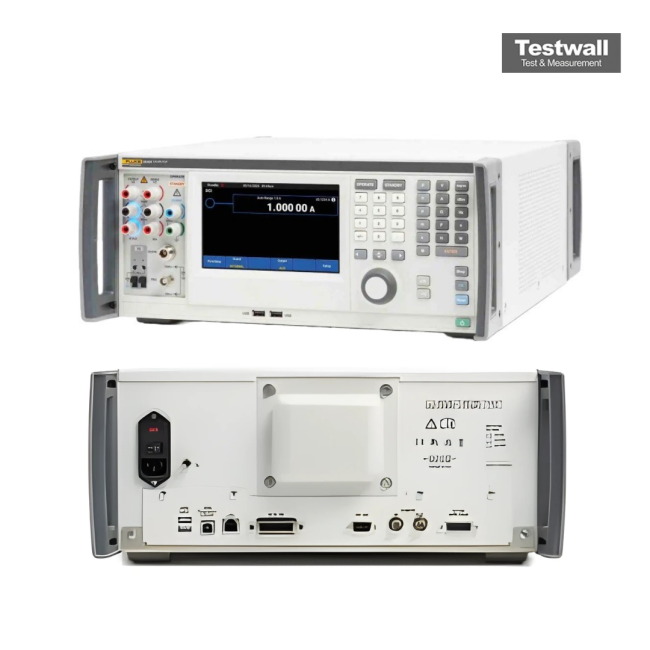

Fluke 5540A Multi-Product Calibrator
Fluke 5540A High-Performance Multi-Product Calibrator extends the capabilities of the 5502A Multi-Product Calibrator with better performance suited for on-site or mobile calibration, covering many of the most demanding field instrumentation workloads. It calibrates the most popular handheld digital multimeters with increased test uncertainty ratios (TURs) and clamp meters to 1500 A with continuous cur output. Fluke 5550A High-Performance Multi-Product Calibrator easily calibrates meters that measure AC/DC voltage, resistance and capacitance. This device features a 17.8 centimeter (7 inch) color touch screen with new graphical user interface providing an intuitive calibration experience.
Fluke 5540A High-Performance Multi-Product Calibrator features a cur range increase from 20 A to 30 A of continuous cur output, which reduces wait time during heavy usage. A range redesign enables it to calibrate existing handheld digital multimeters with greater confidence. A larger variety of thermocouple types and a new thermocouple connector enables easier connection and broadens the temperature workload coverage. With a 52120A amplifier and appropriate coil, the cur output can be increased to 6000A. Fluke 5550A High-Performance Multi-Product Calibrator features optional DMM AUTOCAL Adapter to calibrate digital multimeters with minimal-to-no lead changes. This Multi-Product Calibrator is also protected against expensive damage caused by incoming voltages or overload conditions.
Specifications for the Fluke 5540A Multi-Product Calibrator Include:
| Direct volts | 0 V to ± 1020 V |
| Direct current | 0 to ± 30.2 A |
| Alternating volts | 1 mV to 1020 V 3 Hz to 500 kHz |
| Alternating current | 10 μA to 30.2 A 3 Hz to 30 kHz |
