Hioki MR8847
| Attribute | Value |
|---|---|
| Number of Input Channels | Up to 16 channels (expandable with units) |
| Maximum Sampling Rate | 20 MS/s (per channel) |
| Voltage Measurement Range | ±0.5 mV to ±1000 V (DC to AC) |
| Frequency Bandwidth | DC to 5 MHz (-3 dB) |
| Recording Medium | Internal memory (128 MB standard), USB flash drive, PC via network |
| Display | 10.4-inch TFT color LCD touchscreen |
| Input Module Compatibility | Compatible with multiple Hioki input modules (voltage, temperature, logic, strain, etc.) |
| Isolation | Each channel individually isolated (up to 1000 V CAT II) |
| Interface / Connectivity | Ethernet (100BASE-TX), USB (host and device), SD card slot |
| Power Supply | 100 to 240 V AC, 50/60 Hz |
Hioki MR8847 Options:
- MR8847 - 01 - Max. 16ch, 64MW memory, main unit only
- MR8847 - 02 - Max. 16ch, 256MW memory, main unit only
- MR8847 - 03 - Max. 16ch, 512MW memory, main unit only
| Model | MR8847 |
|---|

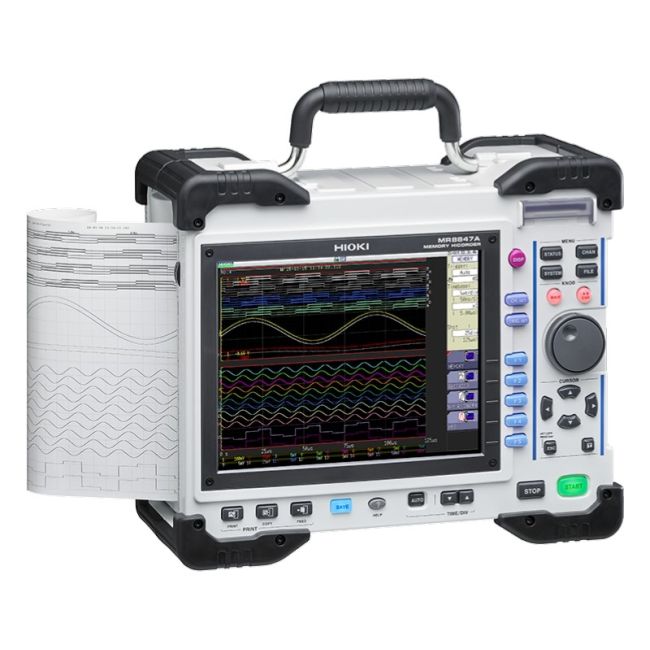

The Hioki MR8847 High Speed Memory HiCorder offers advanced waveform monitoring with up to 20MS/s sampling and complete channel isolation. It measures voltage, current, temperature, vibration, weight, acceleration, and rotation, making it more versatile than traditional oscilloscopes. Its rugged, soil-resistant design ensures reliability in harsh industrial environments.
With support for plug-and-play input modules, the MR8847 is ideal for power supply monitoring, fault analysis, and automotive testing. It provides waveform comparison, real-time decisions, and quick pass/fail checks to boost productivity in critical operations.
Testwall can supply the used Hioki MR8847, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Hioki MR8847.
