Rohde & Schwarz SMA100B-B106
| Attribute | Value |
|---|---|
| Frequency Range | 8 kHz to 6 GHz (Opt. B106) |
| Frequency Resolution | 0.001 Hz |
| Output Power | -145 to +19 dBm (Opt. B103/B106; up to +30 dBm with Opt. K31/B32); +17 dBm at 20 GHz (Opt. B120); +13 dBm at 40 GHz (Opt. B140); +5 dBm at 67 GHz (Opt. B167) |
| SSB Phase Noise | < -135 dBc/Hz (-140 dBc/Hz typ.) at 1 GHz, 20 kHz offset; < -115 dBc/Hz at 10 GHz |
| Modulation | AM, FM, ΦM (Opt. K720), pulse (Opt. K22) |
| Level Accuracy | < 0.5 dB (to 3 GHz), < 0.9 dB (to 20 GHz), < 1.0 dB (to 40 GHz), < 2.0 dB (to 67 GHz) |
| Harmonics | < -60 dBc (Opt. B103/B106), < -55 dBc (Opt. B112 to B167), > 10 MHz |
| Non-Harmonics | < -74 dBc (6 to 12 GHz), < -68 dBc (12 to 24 GHz), offset > 10 kHz |
| Switching Speed | < 2.0 ms (to 20 GHz), < 2.5 ms (to 67 GHz) |
| Sweep Modes | step sweep, ramp sweep (Opt. B28), power sweep, list mode |
| Timebase Aging | 10 MHz, ≤ 1 × 10⁻⁷ per year (≤ 3 × 10⁻⁸ with Opt. B1H/B709/B710/B711) |
Rohde & Schwarz SMA100B-B106 Options:
- SMA100B-B106 - B92 - 2 HU with 5" touch display
- SMA100B-B106 - B93 - 3 HU with 7" touch display
- SMA100B-B106 - B1H - High Performance OCXO Reference Oscillator
- SMA100B-B106 - B710 - Improved Close-in Phase Noise Performance
- SMA100B-B106 - B711 - Ultra Low Phase Noise
- SMA100B-B106 - K703 - 100 MHz, 1 GHz Ultra Low Noise Reference Input/Output
- SMA100B-B106 - K704 - Flexible Reference Input from 1 MHz to 100 MHz
- SMA100B-B106 - K31 - High Output Power 3 GHz/6 GHz
- SMA100B-B106 - B32 - Ultra High Output Power 3 GHz/6 GHz
- SMA100B-B106 - K22 - High Performance Pulse Modulator
- SMA100B-B106 - K23 - Pulse Generator
- SMA100B-B106 - K24 - Multifunction Generator
- SMA100B-B106 - K27 - Pulse Train
- SMA100B-B106 - K720 - AM/FM/φM
- SMA100B-B106 - B29 - Differential Clock Synthesizer 3 GHz
- SMA100B-B106 - K722 - Clock synthesizer frequency extension to 6 GHz
- SMA100B-B106 - B80 - Rear Panel Connectors (3 GHz/6 GHz)
- SMA100B-B106 - B85 - Removable Mass Storage
- SMA100B-B106 - B86 - Remote Control GPIB and USB

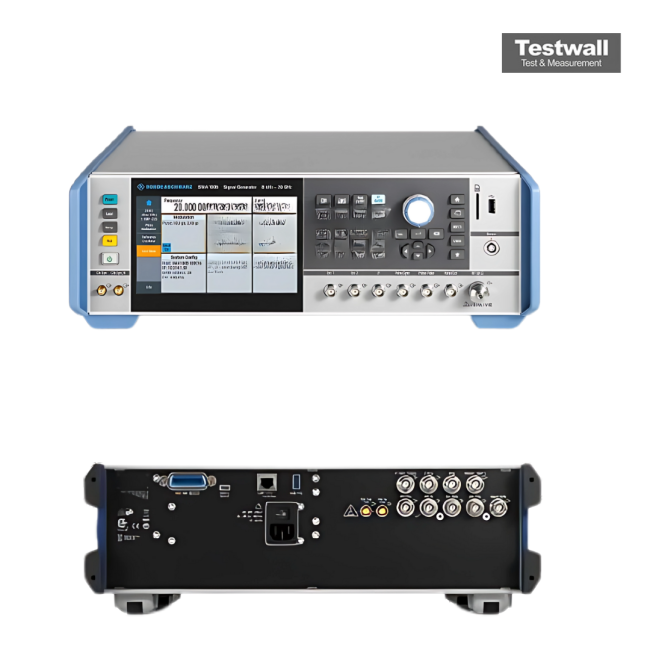

The Rohde & Schwarz SMA100B-B106 is a high-end RF and microwave signal generator offering an extensive frequency range from 8 kHz to 67 GHz, extendable to 72 GHz. With superb SSB phase noise of –132 dBc at 10 GHz and 10 kHz offset, it delivers ultra-clean signals. The unit outputs more than 30 dBm across broad frequency bands while maintaining minimal harmonics.
Ideal for advanced T&M tasks in RF semiconductor, wireless, aerospace, and defense applications. It ensures robust, low-noise signal output across a wide frequency spectrum.
Testwall can supply the used Rohde & Schwarz SMA100B-B106, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz SMA100B-B106.
