Keysight (Agilent) B2987B
| Attribute | Value |
|---|---|
| Measurement Range | 100 fA to 20 mA (current), 100 μV to 1000 V (voltage) |
| Minimum Current Measurement Resolution | 10 aA (atto-ampere) |
| Input Resistance | Up to >10 PΩ (peta-ohm) |
| Voltage Source Output Range | ±1000 V (1 mV resolution), ±100 V (100 μV resolution) |
| Current Source Output Range | ±20 mA maximum output current |
| Measurement Functions | Current, Voltage, Resistance, Charge (Coulombs) |
| High Resistance Measurement Range | Up to 10 PΩ with 4-digit resolution |
| Interface/Connectivity | GPIB, USB, LAN (LXI Core compliant) |
| Display | 4.3-inch color LCD with numeric and graphical display modes |
| Operating Temperature Range | 0°C to 40°C (32°F to 104°F) |
Keysight (Agilent) B2987B Options:
- B2987B - 1A7 - Calibration + Uncertainties + Guardbanding (Not Accredited)
- B2987B - A6J - ANSI Z540-1-1994 Calibration
- B2987B - UK6 - Commercial calibration certificate with test data
| Model | B2987B |
|---|

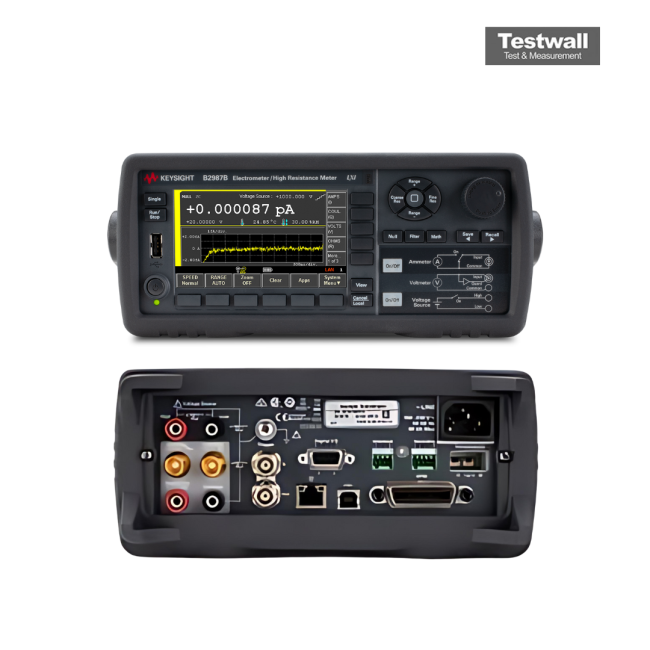

The Keysight (Agilent) B2987B Electrometer/High Resistance Meter offers ultra-sensitive measurements with 0.01 fA resolution and resistance measurements up to 10 PΩ. Its 4.3" color LCD provides graphical display including trend charts and histograms for real-time analysis.
Battery operation minimizes AC line noise, and built-in statistical tools simplify transient analysis without a PC. Optional Setup Integrity Checker helps isolate external noise sources for optimal measurement accuracy.
Testwall can supply the used Keysight (Agilent) B2987B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) B2987B.
