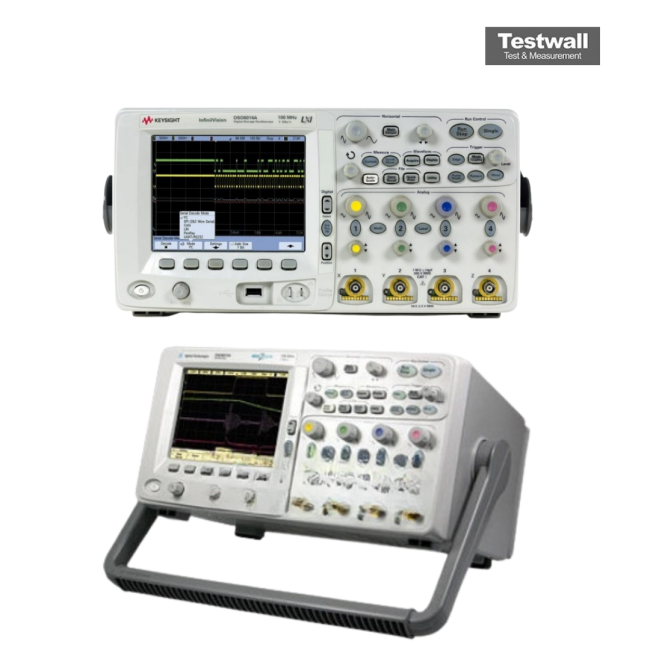

Keysight (Agilent) DSO6014A 4 Ch 100 MHz Digital Storage Oscilloscope
4 Ch 100 MHz Digital Storage Oscilloscope
100 MHz Bandwidth
4 Number of Channels
2 GSa/s Sample Rate
8 Mpts (standard) Memory Depth
8-bit Vertical Resolution
| Attribute | Value |
|---|---|
| Bandwidth | 100 MHz |
| Number of Channels | 4 |
| Sample Rate | 2 GSa/s |
| Memory Depth | 8 Mpts (standard) |
| Vertical Resolution | 8-bit |
| Vertical Sensitivity Range | 1 mV/div to 5 V/div |
| Timebase Range | 5 ns/div to 50 s/div |
| Display | 8.5-inch SVGA color LCD display |
| Input Impedance | 1 MΩ ± 1% in parallel with 13 pF ± 2 pF |
| Trigger Types | Edge, Pulse Width, Pattern, CAN, LIN, I2C, SPI, USB |
Keysight (Agilent) DSO6014A 4 Ch 100 MHz Digital Storage Oscilloscope Options:
- DSO6014A - SEC - Secure Environment Mode Option (prevents oscilloscope setup and trace information from being stored in internal memory)
- DSO6014A - SGM - Segmented Memory (capture infrequent or burst signals with great resolution)
- DSO6014A - LMT - Mask Limit Test (create a mask and test waveforms for compliance)
- DSO6014A - LSS - I2C/SPI Serial Decode Option (serial decode of I2C and SPI buses)
- DSO6014A - AMS - CAN/LIN Automotive Triggering and Decode (serial decode of CAN and LIN buses)
- DSO6014A - BAT - Battery Operation Option (available at time of purchase only)
- DSO6014A - N2911A - Memory Upgrade to 8 Mpts (for MSO/DSO6012A and MSO/DSO6032A models)
- DSO6014A - N5454A - Segmented Memory (order after purchase)
- DSO6014A - N5455A - Mask Limit Test (order after purchase)
- DSO6014A - N5466A - Measurement Statistics and Tracking Cursors (order after purchase)
- DSO6014A - N5423A - I2C/SPI Serial Decode Option (order after purchase)
- DSO6014A - N5424A - CAN/LIN Automotive Triggering and Decode (order after purchase)
- DSO6014A - N5432A - FlexRay Trigger and Decode Option
| Model | DSO6014A |
|---|
The Keysight (Agilent) DSO6014A is a 4-channel, 100 MHz digital storage oscilloscope with 2 GSa/s sample rate and 8 Mpts memory, supporting FPGA debug and serial decode protocols.
Includes probes, guides, front panel cover, storage, and wide I/O connectivity options for versatile testing.
Testwall can supply the used Keysight (Agilent) DSO6014A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) DSO6014A.
