Keysight (Agilent) DSOX92804A
| Attribute | Value |
|---|---|
| Bandwidth | 28 GHz |
| Number of Channels | 4 |
| Sample Rate | 80 GSa/s |
| Memory Depth | 2 Gpts (standard), up to 4 Gpts (optional) |
| Vertical Resolution | 8 bits (up to 10 bits with high resolution mode) |
| Rise Time | 12.5 ps |
| Input Impedance | 50 Ω |
| Timebase Range | 5 ps/div to 20 s/div |
| Display | 15.3-inch WXGA (1280 x 800) color LCD touchscreen |
| Connectivity | USB, LAN (LXI Core 2011), GPIB (optional) |
| Model | DSOX92804A |
|---|

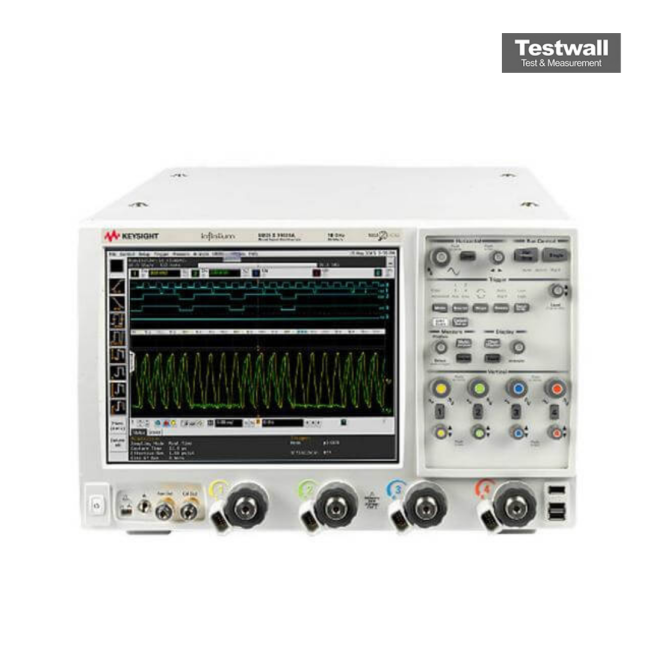

The Keysight (Agilent) DSOX92804A is a 4-channel oscilloscope delivering 28 GHz true analog bandwidth and 80 GSa/s sample rate on 2 channels (40 GSa/s on 4 channels). It features a 12.1" touch screen display, 2 Gpts memory, and supports MATLAB, LXI class C, and multiple I/O ports including PCIe, USB, GPIB, and RS-232.
Designed for high-speed signal acquisition, it offers a 400,000 wfms/s update rate, segmented memory mode, and low jitter measurement floor below 150 fS. Users can remotely access data through built-in LAN with web-enabled connectivity.
Testwall can supply the used Keysight (Agilent) DSOX92804A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) DSOX92804A.
