Keysight (Agilent)
Keysight (Agilent) 54710A
1 GHz Bandwidth
2 GSa/s Sample Rate
2 Channels Number of Channels
32 Kpoints per channel Memory Depth
8 bits Vertical Resolution
| Attribute | Value |
|---|---|
| Bandwidth | 1 GHz |
| Sample Rate | 2 GSa/s |
| Number of Channels | 2 Channels |
| Memory Depth | 32 Kpoints per channel |
| Vertical Resolution | 8 bits |
| Vertical Sensitivity | 1 mV/div to 5 V/div |
| Time Base Range | 500 ps/div to 5 s/div |
| Input Impedance | 50 Ω or 1 MΩ |
| Display | 8.5-inch color display |
| Interface | GPIB (IEEE-488) |
| Model | 54710A |
|---|

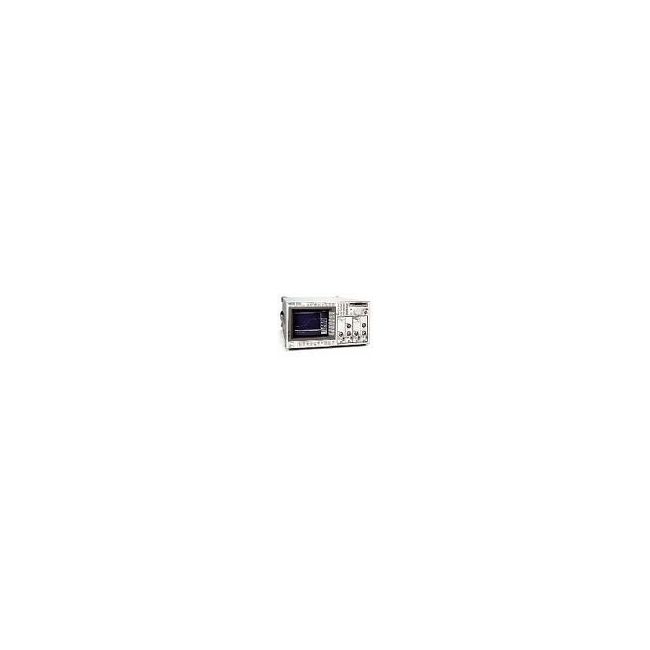

The Keysight (Agilent) 54710A Oscilloscope Mainframe features 1.5 GHz bandwidth and two channels, supporting up to 4 GSa/s sampling rate and 16384 pt/sec record length. Its 8-bit resolution and 233 ps rise time ensure precision in signal analysis.
Ideal for high-speed signal testing, the unit includes a color CRT display, 100 ps/div to 10 s/div timebase, and both internal and external trigger sources with a minimum trigger holdoff of 60 ns.
Testwall can supply the used Keysight (Agilent) 54710A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 54710A.
