Keysight (Agilent) 59307A
Dual VHF Switch 500MHz
VHF Switch / Dual 4-to-1 Multiplexer Function
DC to 500 MHz Frequency Range
8 channels (two independent 4-to-1 configurations) Number of Channels
Less than 1 dB at 500 MHz Insertion Loss
Greater than 60 dB at 10 MHz, greater than 40 dB at 500 MHz Isolation
| Attribute | Value |
|---|---|
| Function | VHF Switch / Dual 4-to-1 Multiplexer |
| Frequency Range | DC to 500 MHz |
| Number of Channels | 8 channels (two independent 4-to-1 configurations) |
| Insertion Loss | Less than 1 dB at 500 MHz |
| Isolation | Greater than 60 dB at 10 MHz, greater than 40 dB at 500 MHz |
| VSWR | Less than 1.5:1 at 500 MHz |
| Connector Type | BNC connectors |
| Control Interface | HP-IB (GPIB) compatible, compatible with HP 59306A Relay Actuator |
| Operating Voltage | +5V DC, +15V DC, -15V DC (supplied via HP 59306A or equivalent) |
| Operating Temperature Range | 0°C to 55°C |
| Model | 59307A |
|---|

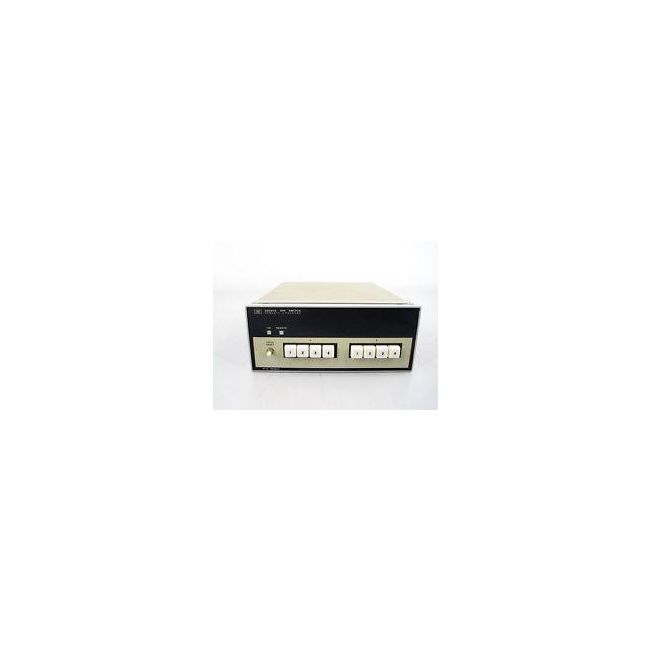

The Keysight (Agilent) 59307A VHF Switch features two independent, bidirectional SP4T switches supporting fast pulse transitions across 50-ohm signal lines up to 500 MHz, with HP-IB interface and front-panel control.
Ideal for routing synthesizer, pulse generator, or other signal outputs into measurement setups, the 59307A enables precise system configuration and calibration with matched delay performance.
Testwall can supply the used Keysight (Agilent) 59307A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 59307A.
