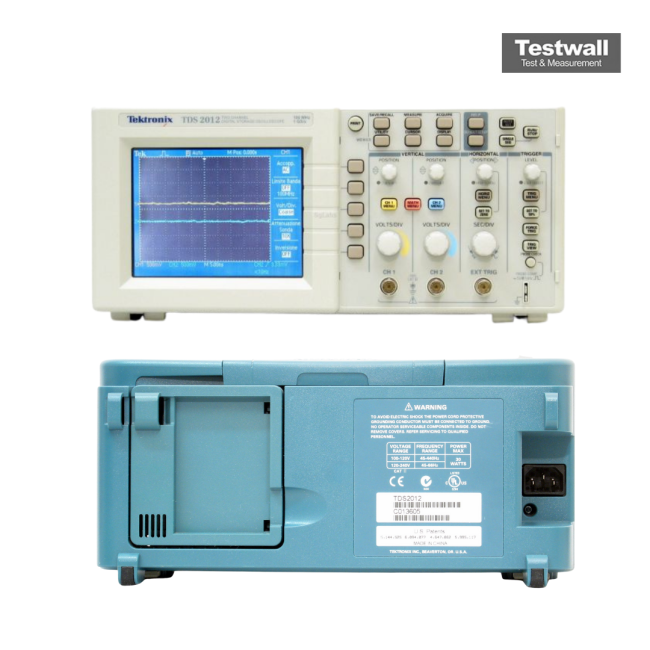

Tektronix TDS2012
| Attribute | Value |
|---|---|
| Bandwidth | 100 MHz |
| Number of Channels | 2 |
| Sample Rate | 1 GS/s |
| Record Length | 2,500 points |
| Vertical Resolution | 8 bits |
| Vertical Sensitivity | 2 mV/div to 5 V/div |
| Time Base Range | 5 ns/div to 50 s/div |
| Input Impedance | 1 MΩ in parallel with 20 pF |
| Display | 5.7-inch color LCD |
| Input Coupling | AC, DC, GND |
Tektronix TDS2012 Options:
Options available for the Tektronix TDS200 / TDS1000 / TDS2000 Series. Installed options vary from unit to unit – ask us for the exact configuration of the instrument you are interested in.
- TDS2012 - TDS2CM - Communications extension module (GPIB, RS-232, Centronics)
- TDS2012 - TDS2CMA - Communications extension module (GPIB, RS-232, Centronics)
- TDS2012 - TDS2MM - Measurement extension module (FFT, GPIB, RS-232, Centronics)
- TDS2012 - TDS2MEM - Storage memory and communications module (CompactFlash)
The Tektronix TDS2012 offers 100 MHz analog bandwidth and a 1 GS/s sample rate in a compact, dual-channel design ideal for moderate-frequency applications.
It features a color display, Autoset, Probe Check Wizard, 11 automatic measurements, FFT analysis, and a USB port for streamlined documentation.
Testwall can supply the used Tektronix TDS2012, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TDS2012.
