Keysight (Agilent)

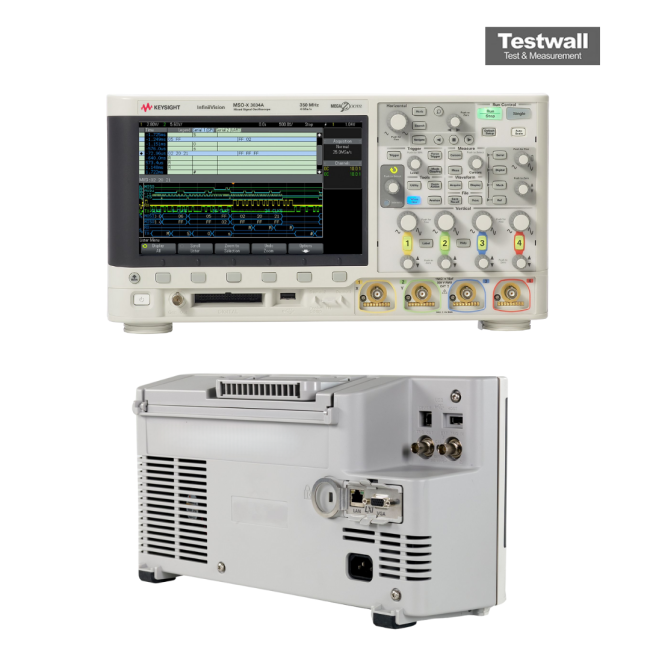

Keysight (Agilent) MSOX3034A
350MHz, 4+16 channel MSO with capacitive touchscreen
350 MHz Bandwidth
4 Number of Analog Channels
16 Number of Digital Channels
4 GSa/s Sample Rate
4 Mpts standard (up to 8 Mpts with option) Memory Depth
| Attribute | Value |
|---|---|
| Bandwidth | 350 MHz |
| Number of Analog Channels | 4 |
| Number of Digital Channels | 16 |
| Sample Rate | 4 GSa/s |
| Memory Depth | 4 Mpts standard (up to 8 Mpts with option) |
| Display | 8.5-inch WVGA (800 x 480) capacitive touch display |
| Waveform Update Rate | 1,000,000 waveforms per second |
| Serial Protocol Triggering and Decode | I2C, SPI, UART/RS232, CAN, LIN (optional) |
| Connectivity | USB, LAN (LXI), GPIB (optional) |
| Vertical Resolution | 8-bit (up to 12-bit with high-resolution mode) |
Keysight Technologies MSOX3034A Options:
- MSOX3034A - DSOX3MSO - Upgrade to 16 digital timing channels (MSO upgrade)
- MSOX3034A - DSOX3MEMUP - Memory upgrade to 4 Mpts half-channel
- MSOX3034A - DSOX3WAVEGEN - WaveGen built-in 20 MHz function generator
- MSOX3034A - DSOX3MASK - Mask limit testing application
- MSOX3034A - DSOX3SGM - Segmented memory application
- MSOX3034A - DSOX3EMBD - Embedded serial triggering and analysis (I2C, SPI)
- MSOX3034A - DSOX3COMP - Computer serial triggering and analysis (RS232/422/485/UART)
- MSOX3034A - DSOX3AUTO - Automotive serial triggering and analysis (CAN, LIN)
- MSOX3034A - DSOX3AUDIO - Audio serial triggering and analysis (I2S)
- MSOX3034A - DSOXEDK - Educator's Oscilloscope Training Kit
- MSOX3034A - U1881A - Power measurement and analysis
- MSOX3034A - B4610A - PC offline viewing
- MSOX3034A - DSOX3BW54 - Bandwidth upgrade from 350 MHz to 500 MHz (4 channel models)
- MSOX3034A - DSOXLAN - LAN/VGA connection module
- MSOX3034A - DSOXGPIB - GPIB connection module
- MSOX3034A - N6456A - Rack mount kit
- MSOX3034A - N6457A - Soft carrying case and front panel cover
- MSOX3034A - N6458A - Hard copy manual
| Model | MSOX3034A |
|---|
The Keysight (Agilent) MSOX3034A is a powerful 4-channel oscilloscope from the InfiniiVision 3000 X-Series, featuring a 350 MHz bandwidth, 4 GSa/s sampling rate, and MegaZoom IV memory for real-time analysis.
With its integrated 5-in-1 instrument design, including a 20 MHz generator, protocol analyzer, and 16 digital channels, the MSOX3034A delivers broad test coverage and upgradability for advanced measurement tasks.
Testwall can supply the used Keysight (Agilent) MSOX3034A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) MSOX3034A.
.
