Keysight (Agilent)

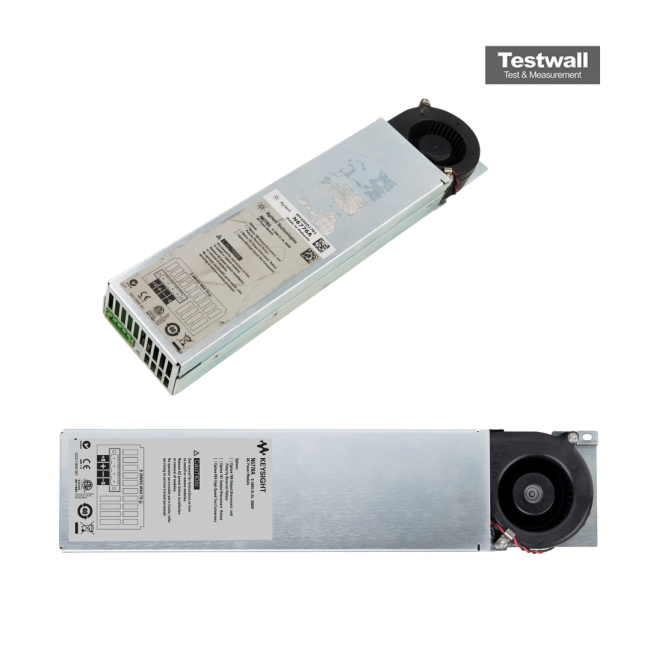

Keysight (Agilent) N6776A
DC Power Module, 100V, 3A, 300W
0 to 20 V Output Voltage Range
0 to 12 A Output Current Range
240 W maximum Output Power
1 (Single Output) Number of Outputs
0.04% + 10 mV Voltage Programming Accuracy
| Attribute | Value |
|---|---|
| Output Voltage Range | 0 to 20 V |
| Output Current Range | 0 to 12 A |
| Output Power | 240 W maximum |
| Number of Outputs | 1 (Single Output) |
| Voltage Programming Accuracy | 0.04% + 10 mV |
| Current Programming Accuracy | 0.04% + 12 mA |
| Voltage Readback Accuracy | 0.04% + 10 mV |
| Current Readback Accuracy | 0.04% + 12 mA |
| Form Factor / Module Type | DC Power Module compatible with N6700 Modular Power System mainframe |
| Interface / Connectivity | Controlled via N6700 series mainframe (GPIB, LAN, USB) |
Keysight (Agilent) N6776A Options:
- N6776A - 760 - Output disconnect/polarity reversal relays
- N6776A - 761 - Output disconnect relays
- N6776A - 054 - High-speed Test Extensions (output list and digitized measurement capability)
| Model | N6776A |
|---|
The Keysight N6776A is a 300 W programmable DC power module delivering up to 100 V and 3 A with high precision (0.1% voltage, 0.15% current), low noise (45 mVpp, 18 mVrms), and comprehensive protection. It integrates seamlessly with GPIB, LAN, USB, and LXI for reliable connectivity and control.
Designed for DUT powering and ATE resource management, the N6776A ensures accurate voltage/current regulation, fast response, and compatibility with N6700/N6705 systems, ideal for both bench testing and automated environments.
Testwall can supply the used Keysight N6776A, fully tested. With expert support and global delivery, Testwall ensures high‑performance instrumentation with unmatched reliability and service quality.
