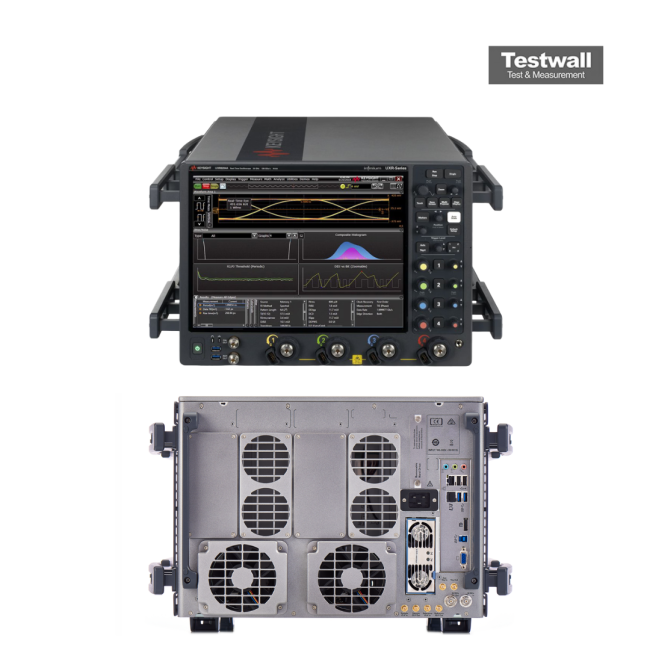

Keysight (Agilent) UXR0592A
| Attribute | Value |
|---|---|
| Bandwidth | 59 GHz |
| Number of Channels | 2 |
| Sample Rate | 256 GSa/s |
| Vertical Resolution | 10 bits |
| Memory Depth | Up to 2 Gpts per channel |
| Rise Time | 7.3 ps |
| Input Impedance | 50 Ohm |
| Maximum Input Voltage | ±850 mV (with 50 Ohm input) |
| Display | 15.6-inch capacitive touch screen, 1920 x 1080 resolution |
| Operating System | Windows 10 |
Keysight (Agilent) UXR0592A Options:
- UXR0592A - UXR0000-01G - 1 Gpt per channel High Performance Memory
- UXR0592A - UXR0000-02G - 2 Gpts per channel High Performance Memory
- UXR0592A - N2130A-01G - Memory upgrade from 200 Mpts to 1 Gpts per channel
- UXR0592A - N2130A-02G - Memory upgrade from 1 Gpt to 2 Gpts per channel
- UXR0592A - N2129BU-009 - Bandwidth upgrade – 2-Channel Infiniium UXR – 50 GHz to 59 GHz
- UXR0592A - N2129BU-010 - Bandwidth upgrade – 2-Channel Infiniium UXR – 59 GHz to 70 GHz
- UXR0592A - N2129BU-011 - Bandwidth upgrade – 2-Channel Infiniium UXR – 70 GHz to 80 GHz
- UXR0592A - N2129BU-012 - Bandwidth upgrade – 2-Channel Infiniium UXR – 80 GHz to 100 GHz
- UXR0592A - N2129BU-013 - Bandwidth upgrade – 2-Channel Infiniium UXR – 100 GHz to 110 GHz
- UXR0592A - N2129BU-031 - Upgrade from 2 channels to 4 channels – for 50 GHz Infiniium UXR
- UXR0592A - N2126A - Infiniium UXR Real-Time Oscilloscope Calibration Module, 1.85 mm
- UXR0592A - N2131A-01T - Additional removable SSD for Infiniium UXR Real-Time Oscilloscope – 960GB
- UXR0592A - N2156A - Rack mount kit for Infiniium UXR Real-Time Oscilloscopes
- UXR0592A - N2158A - UXR Real-Time Oscilloscope Transportation case
| Model | UXR0592A |
|---|
The Keysight (Agilent) UXR0592A offers 59 GHz bandwidth across 2 full bandwidth channels, featuring a 10-bit ADC and a 256 GSa/s sample rate on all channels for precise high-speed signal analysis. It supports up to 2 Gpts memory and upgradeability to 110 GHz for extended flexibility in demanding RF applications.
Equipped with high-speed SDA, clock recovery, user-defined functions, and optional on-site self-calibration via a dedicated module, it meets the needs of advanced test environments. 1.85 mm connector inputs provide robust signal integrity.
Testwall can supply the used Keysight (Agilent) UXR0592A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) UXR0592A.
