Leader

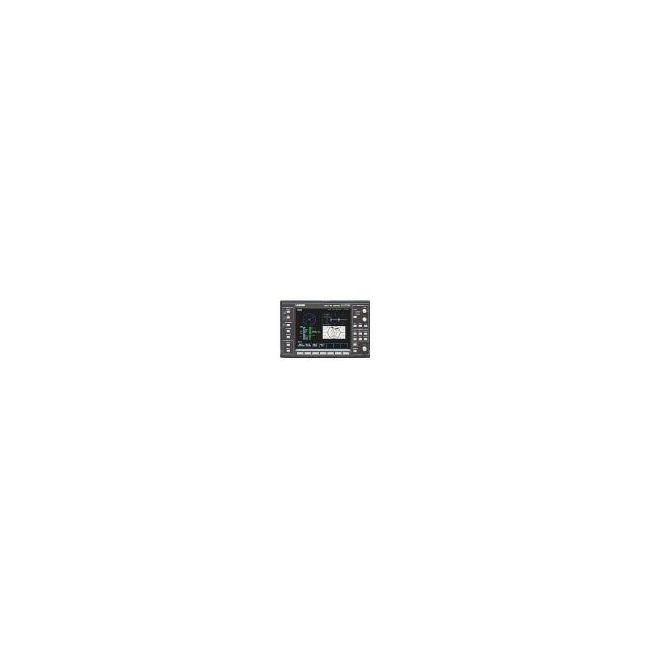

Leader LV5700
SD, HD, 3G-SDI, 6G-SDI, 12G-SDI Signal Standards Supported
HDR waveform display including PQ (SMPTE ST 2084) and HLG (ARIB STD-B67) HDR Support
8-inch high-resolution color LCD touchscreen Display Type
Waveform monitor, vectorscope, picture monitor, audio meter, and data dump Waveform Displays
4 x BNC SDI inputs supporting up to 12G-SDI single-link SDI Input Connectors
| Attribute | Value |
|---|---|
| Signal Standards Supported | SD, HD, 3G-SDI, 6G-SDI, 12G-SDI |
| HDR Support | HDR waveform display including PQ (SMPTE ST 2084) and HLG (ARIB STD-B67) |
| Display Type | 8-inch high-resolution color LCD touchscreen |
| Waveform Displays | Waveform monitor, vectorscope, picture monitor, audio meter, and data dump |
| SDI Input Connectors | 4 x BNC SDI inputs supporting up to 12G-SDI single-link |
| Audio Monitoring | Up to 16-channel embedded audio monitoring with Loudness measurement (ITU-R BS.1770) |
| IP Signal Support | SMPTE ST 2022-6 and SMPTE ST 2110 IP video monitoring (with optional upgrade) |
| Simultaneous Display | Up to 4 simultaneous display windows on a single screen |
| Power Supply | AC 100–240V, 50/60Hz universal power supply |
| Form Factor | Half-rack 2U portable/rackmount design |
| Model | LV5700 |
|---|
