NoiseKen FNS-AX3-B50
Fast Transient Burst Simulator 4.8 Kv / 2MHz
0 to ±50V Output Voltage Range
3A maximum Output Current
DC to 100 kHz Frequency Range
Random noise superimposed on DC power supply lines Noise Waveform
Direct coupling to power supply lines Coupling Method
| Attribute | Value |
|---|---|
| Output Voltage Range | 0 to ±50V |
| Output Current | 3A maximum |
| Frequency Range | DC to 100 kHz |
| Noise Waveform | Random noise superimposed on DC power supply lines |
| Coupling Method | Direct coupling to power supply lines |
| Input Power Supply | AC 100V to 240V, 50/60 Hz |
| Applicable Standards | ISO 7637-2, ISO 16750-2 |
| Operating Temperature | 0°C to 40°C |
| Dimensions | Approximately 420 x 177 x 450 mm (W x H x D) |
| Weight | Approximately 20 kg |
| Model | FNS-AX3-B50 |
|---|

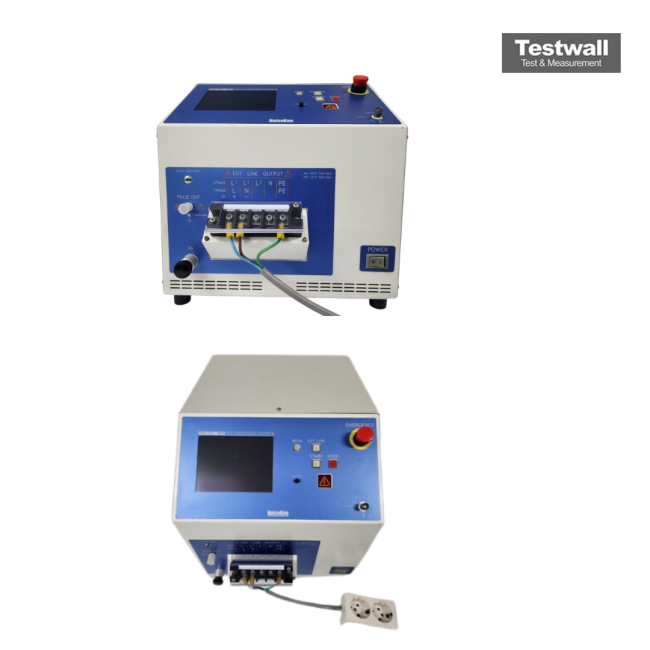

The Noiseken FNS-AX3-B50 is an advanced Fast Transient Burst Simulator designed for complance testing in accordance with IEC61000-4-4 edition 2. This unit features Pulse Outputs up to 4.8 kV at 2 MHz Pulse repetition frequencies for testing 85 to 500 VAC .
