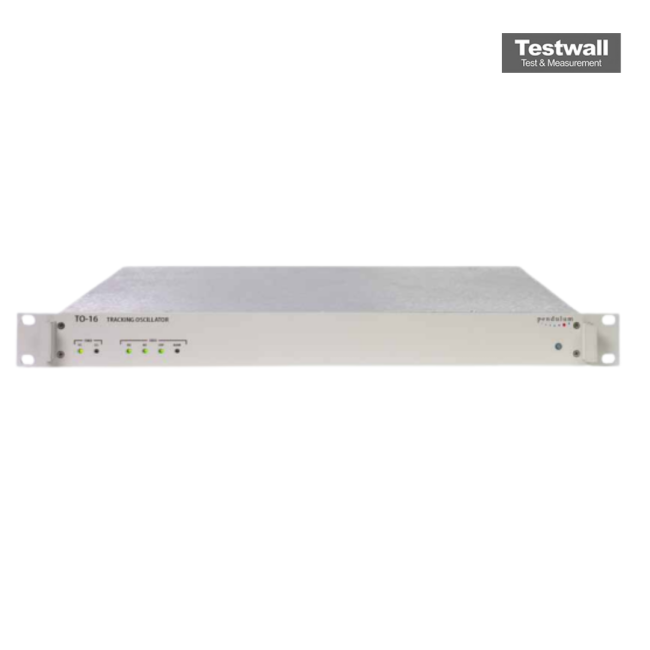

Pendulum TO-16 Tracking Oscillator
1 MHz to 400 MHz Frequency Range
1 MHz to 400 MHz Input Frequency
1 MHz to 400 MHz Output Frequency
-10 dBm to +10 dBm Input Level
+13 dBm typical Output Level
| Attribute | Value |
|---|---|
| Frequency Range | 1 MHz to 400 MHz |
| Input Frequency | 1 MHz to 400 MHz |
| Output Frequency | 1 MHz to 400 MHz |
| Input Level | -10 dBm to +10 dBm |
| Output Level | +13 dBm typical |
| Phase Noise | -130 dBc/Hz at 10 kHz offset |
| Lock Range | ±0.5% of input frequency |
| Power Supply | +12 VDC, 500 mA |
| Connector Type | BNC (50 Ohm) |
| Operating Temperature | 0°C to +50°C |
Pendulum TO-16 Tracking Oscillator Options:
- TO-16 - Option 17/05 - 5MHz output reference frequency in place of 10 MHz
- TO-16 - Option 95/03 - Extended warranty from 18 months to 3 years
- TO-16 - Option 95/05 - Extended warranty from 18 months to 5 years
- TO-16 - Option 18/10 - RS232 to Ethernet converter plus digital input/output
| Model | TO-16 |
|---|
- Low phase noise outputs - even from noisy input reference
- Four outputs phase locked to Reference input
- Autosensing frequency input 5 or 10 MHz for application flexibility
- 5 or 10 MHz outputs can give input frequency doubling or halving
- Good holdover performance if input signals source fails
- Built in test and remote control and monitoring
