Rohde & Schwarz ZNL3
| Attribute | Value |
|---|---|
| Frequency Range | 5 kHz to 3 GHz |
| Number of Ports | 2 |
| Dynamic Range | Up to 120 dB |
| Output Power | -40 dBm to +3 dBm |
| Measurement Speed | 4.7 ms per point (typical) |
| Display | 10.1-inch capacitive touchscreen, 1280 x 800 resolution |
| Impedance | 50 Ohm |
| Trace Noise | <0.004 dB RMS (typical) |
| Connectivity | USB, LAN (Ethernet), GPIB (optional) |
| Operating Temperature | 0°C to +50°C |
Rohde & Schwarz ZNL3 Options:
- ZNL3 - ZNLx-B1 - Spectrum Analysis
- ZNL3 - ZNL-K2 - Time Domain Measurement
- ZNL3 - FPL1-K9 - R&S NRP Power Sensor Measurement
- ZNL3 - FPL1-K7 - AM/FM/φM Analog Modulation Analysis
- ZNL3 - VSE-K70 - Vector Signal Analysis
- ZNL3 - VSE-K106 - EUTRA/LTE NB-IOT
| Model | ZNL3 |
|---|

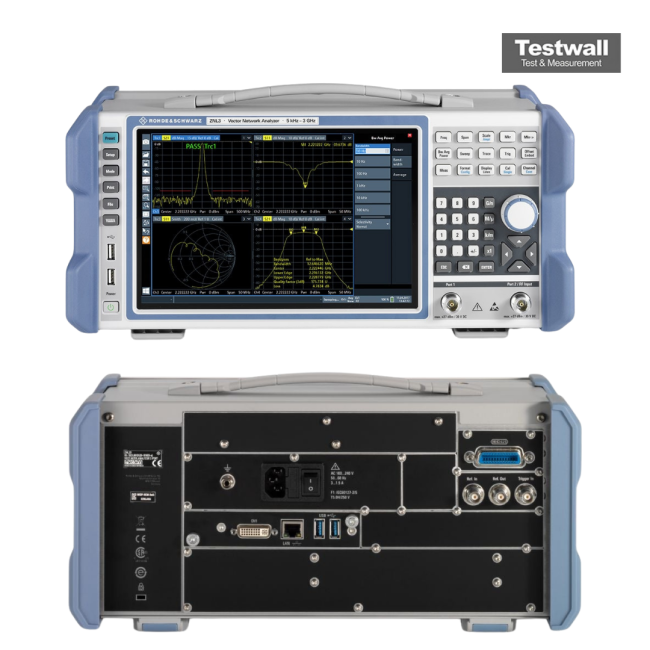

The Rohde and Schwarz ZNL3 is a 2-port Vector Network Analyzer operating from 5 kHz to 3 GHz with N(f) connectors. This compact unit integrates multiple test functions, optionally including a spectrum analyzer and power meter, into a single device. Its advanced design ensures higher RF performance and faster measurement speeds compared to similar-class instruments.
Ideal for bi-directional measurements, the ZNL3 supports simultaneous vector and spectrum analysis. Its user-friendly interface, equipped with wizards and clear menu structures, simplifies test configuration and execution.
Testwall can supply the used Rohde and Schwarz ZNL3, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde and Schwarz ZNL3.
